Features
-
Versatile WAN Options – Supports WAN priority and fallback across Ethernet, WiFi, and LTE.
-
LTE Connectivity – LTE Cat 4 with nano SIM slot, supporting multiple U.S. LTE bands.
-
WiFi Access – Built-in WiFi 4 for wireless client connectivity.
-
Advanced Security – OpenVPN, WireGuard, and IPsec site-to-site VPN support.
-
Compact & Rugged – Small, lightweight form factor with DIN rail and wall mounts included.
-
Durable Design – Polycarbonate enclosure with steel DIN mount, operating from -30 to 70°C.
-
Low Power Consumption – Efficient 5.7W max power draw with flexible DC or USB-C inputs.
-
Certified & Compliant – FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, and Wi-Fi Alliance certified.

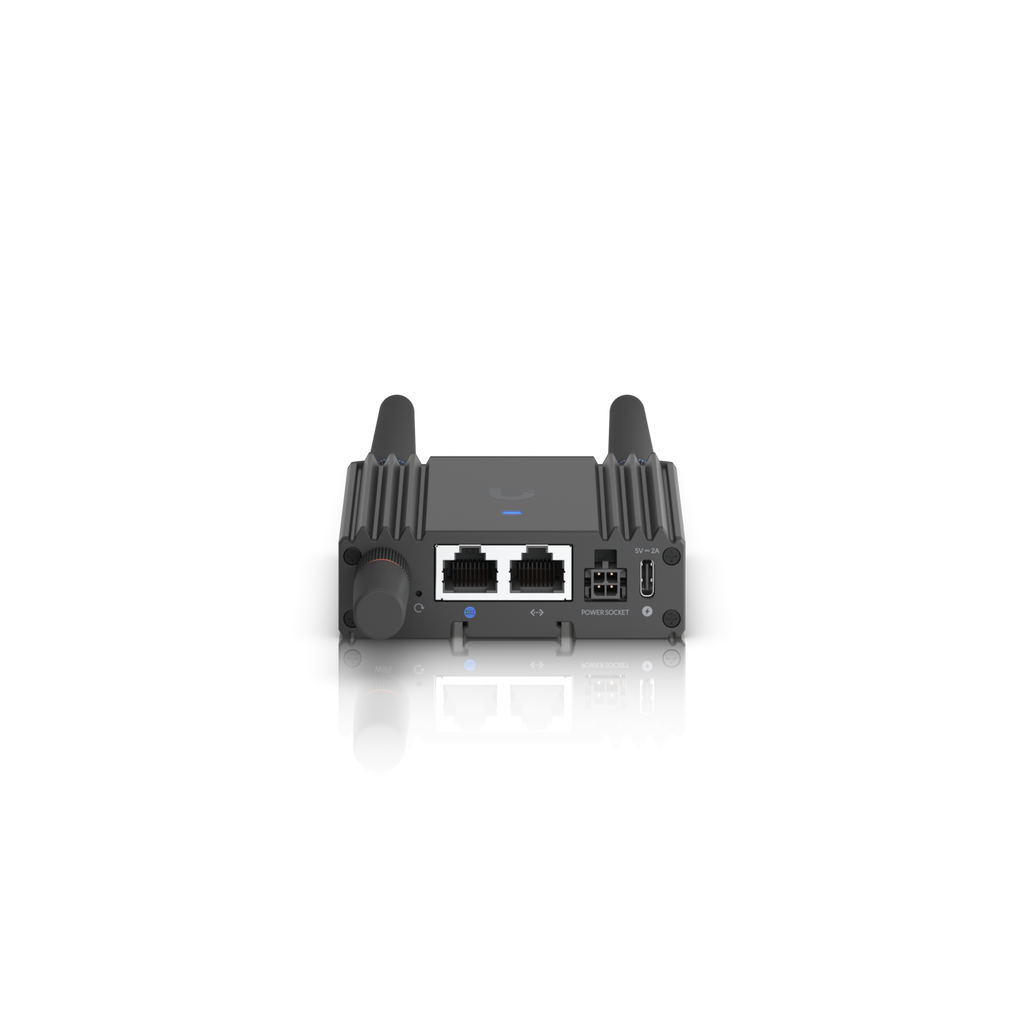

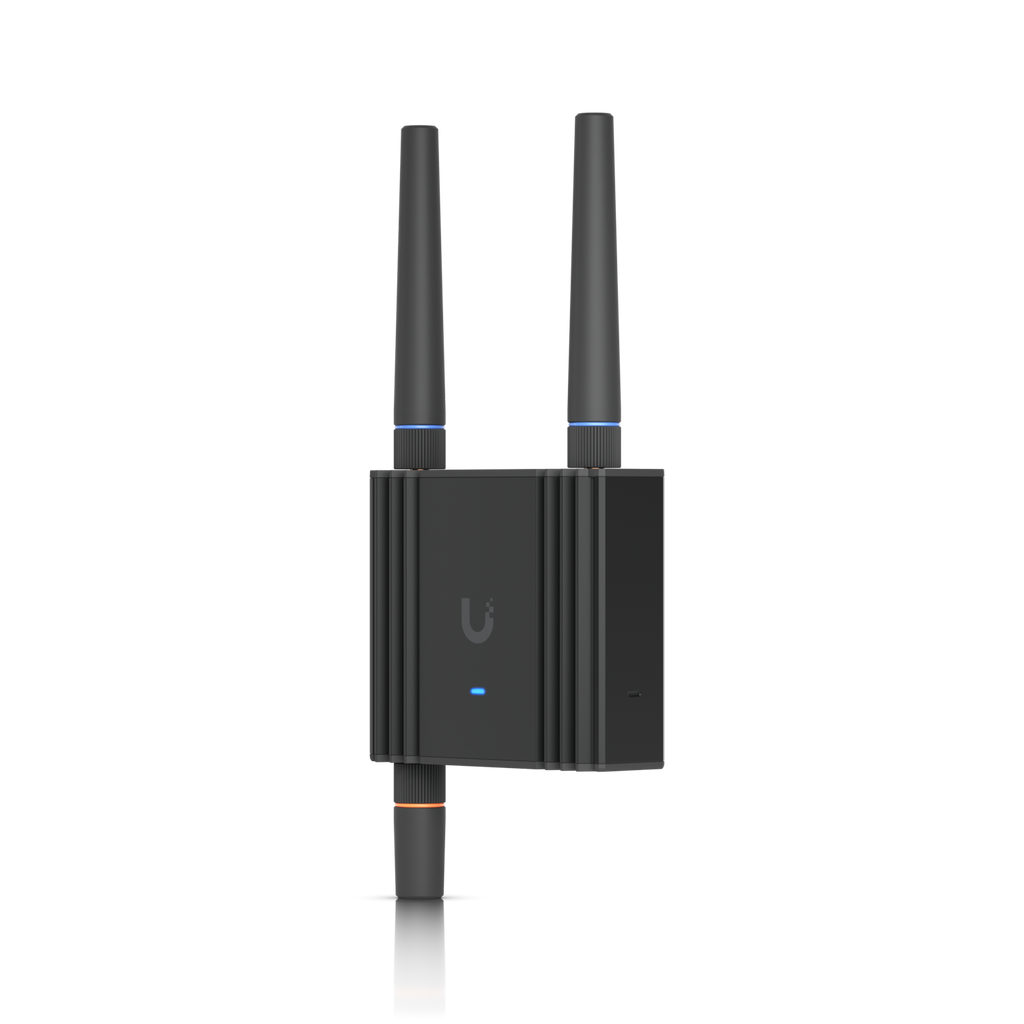

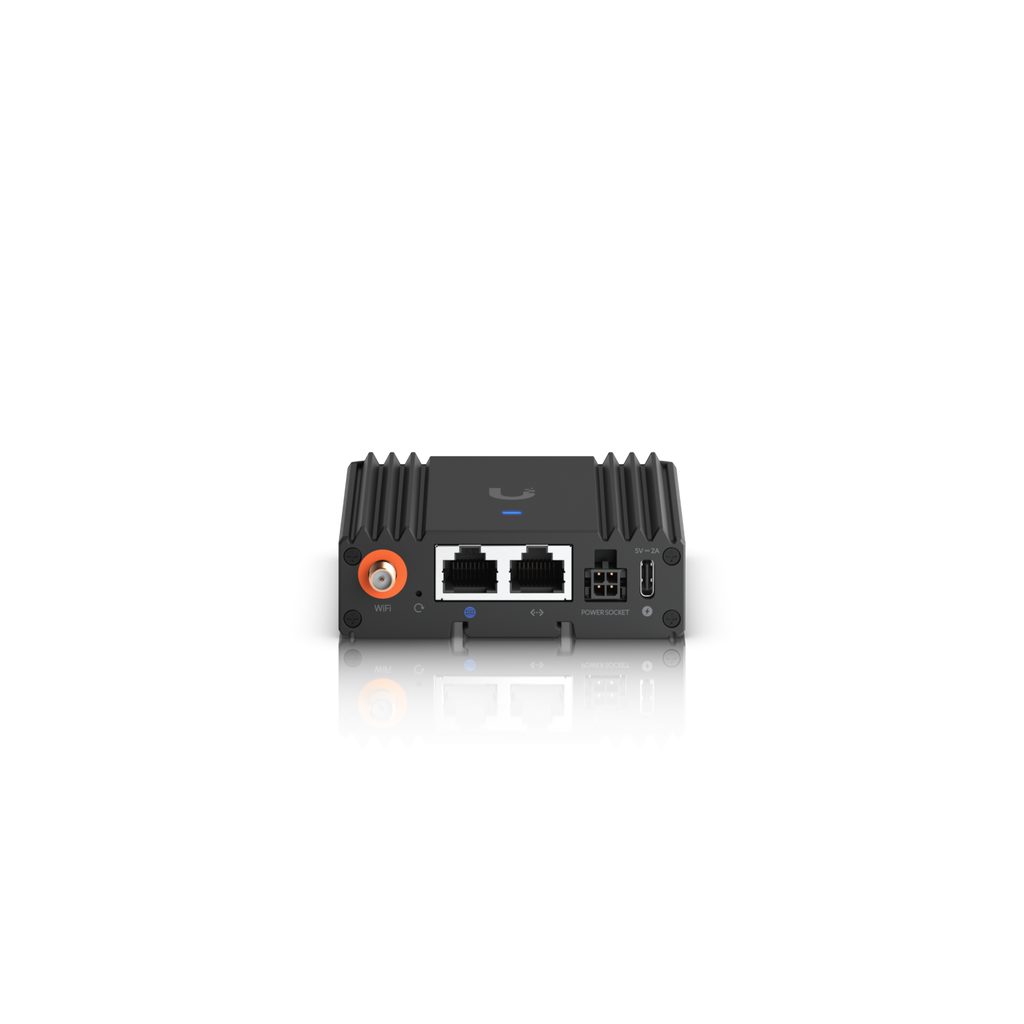

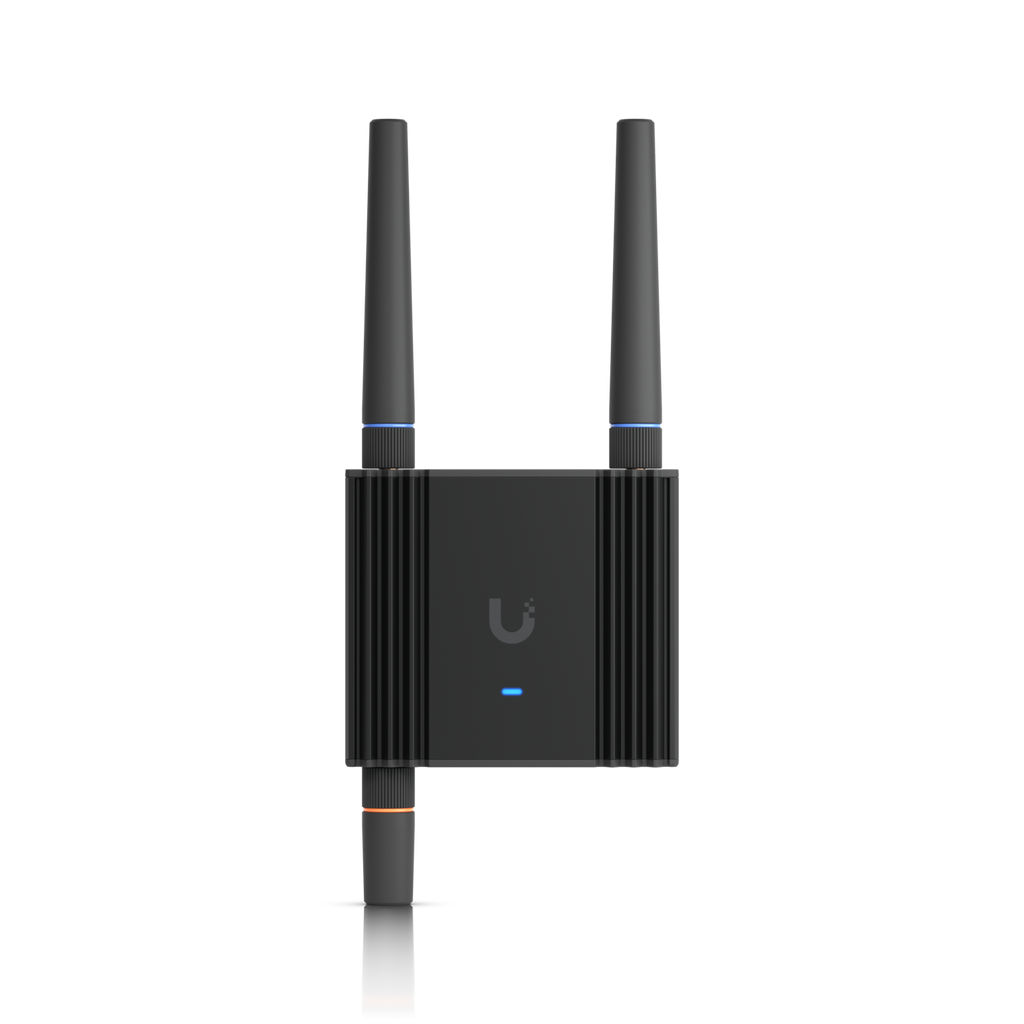

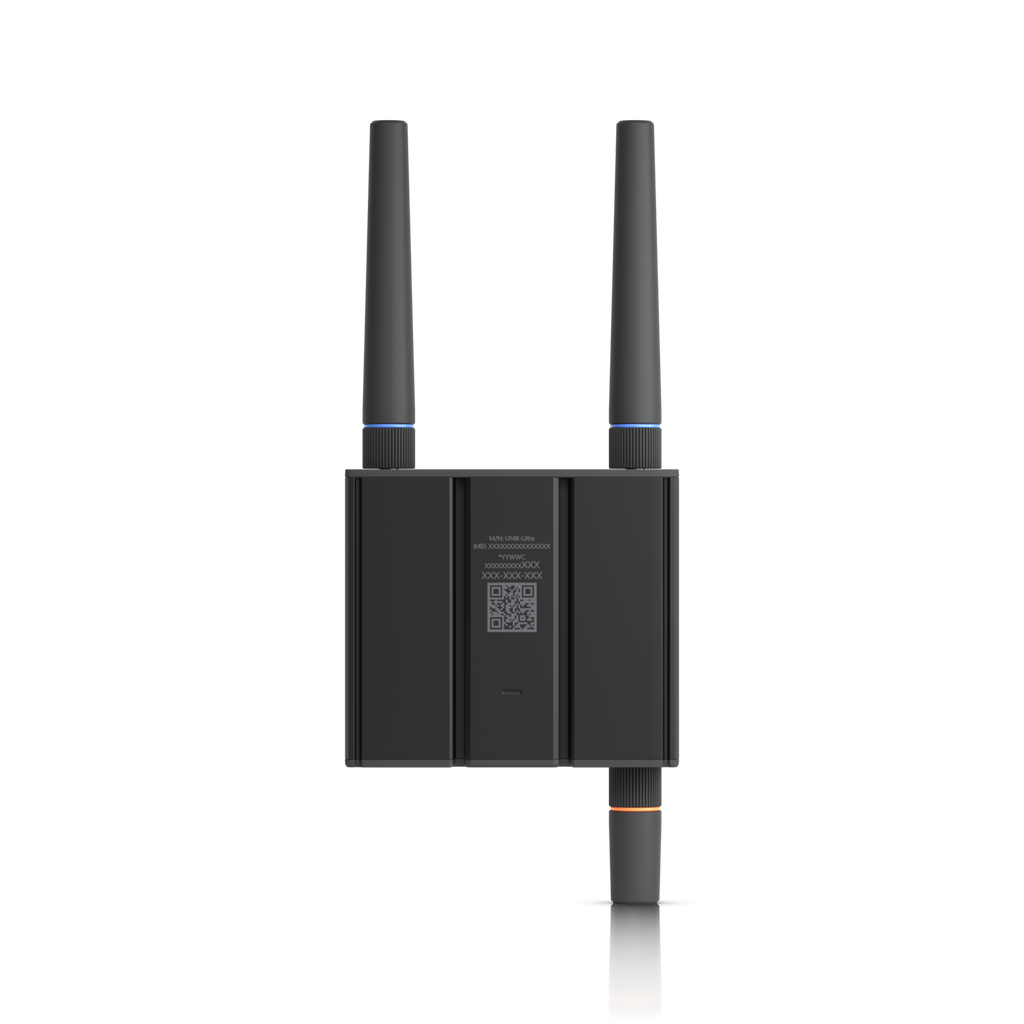

The Ubiquiti UMR-Ultra-US UniFi Mobile Router Ultra delivers secure, high-performance mobile connectivity in a compact design. Equipped with dual Fast Ethernet ports, LTE Cat 4 radio, and WiFi 4, it provides flexible WAN options with support for priority and fallback between wired, cellular, and wireless connections.
With robust VPN support, advanced firewall features, and seamless UniFi integration, the UMR-Ultra-US is ideal for mobile networks, branch offices, or remote deployments.
Its lightweight, durable polycarbonate chassis with DIN rail and wall-mounting options makes installation simple, while wide LTE band support ensures reliable connectivity across major U.S. carriers.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UMR-Ultra-US |
| UPC | 810084697146 |
| Dimensions | 84 × 82 × 26 mm (3.3 × 3.2 × 1") without antennas 193.5 × 82 × 26 mm (7.6 × 3.2 × 1") with antennas |
| Weight | 200 g (7.1 oz) device; 220 g (7.8 oz) with mounts |
| Networking Interfaces | 2 × Fast Ethernet RJ45 ports, LTE Cat 4, WiFi 4 |
| SIM | Nano SIM |
| LTE Bands | B2, B4, B5, B12, B13, B14, B25, B26, B66, B71 |
| WiFi Standard | WiFi 4 (802.11n) |
| WiFi Data Rates | 802.11b: 1–11 Mbps 802.11g: 6–54 Mbps 802.11n: 6.5–150 Mbps |
| LTE Throughput Speed | Download: 150 Mbps / Upload: 50 Mbps |
| VPN Support | OpenVPN, WireGuard, IPsec site-to-site |
| Max TX Power | 17 dBm |
| WiFi MIMO | 1 × 1 |
| Antennas | 2 × External LTE, 1 × External WiFi, 1 × External GPS |
| Power Method | USB Type-C (5V DC/2A), 4-pin ATX DC (9–30V DC) |
| Max. Power Consumption | 5.7W |
| Enclosure / Mount Material | Polycarbonate enclosure; Steel DIN rail mount |
| Operating Conditions | -30 to 70°C (-22 to 158°F), 10–90% noncondensing humidity |
| Certifications | FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance |
| NDAA Compliant | Yes |
