Features
-
LTE Connectivity – LTE Cat 4 with pre-installed AT&T nano SIM card for quick setup.
-

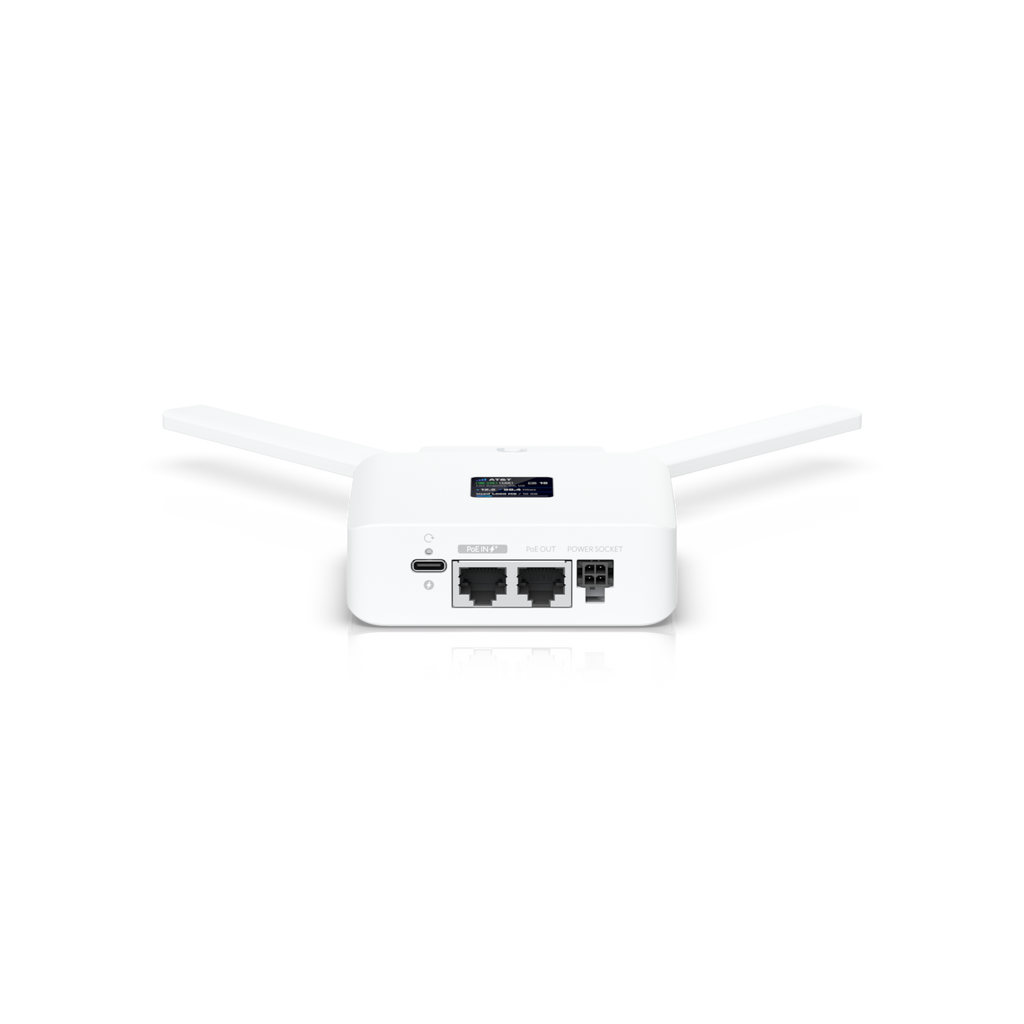

Versatile Networking – Dual GbE RJ45 ports, WiFi 4, and WAN priority & fallback.
-
Advanced Security – Supports OpenVPN, WireGuard, and IPsec site-to-site VPNs.
-
Compact Design – Lightweight chassis with wall and DIN rail mounting options.
-

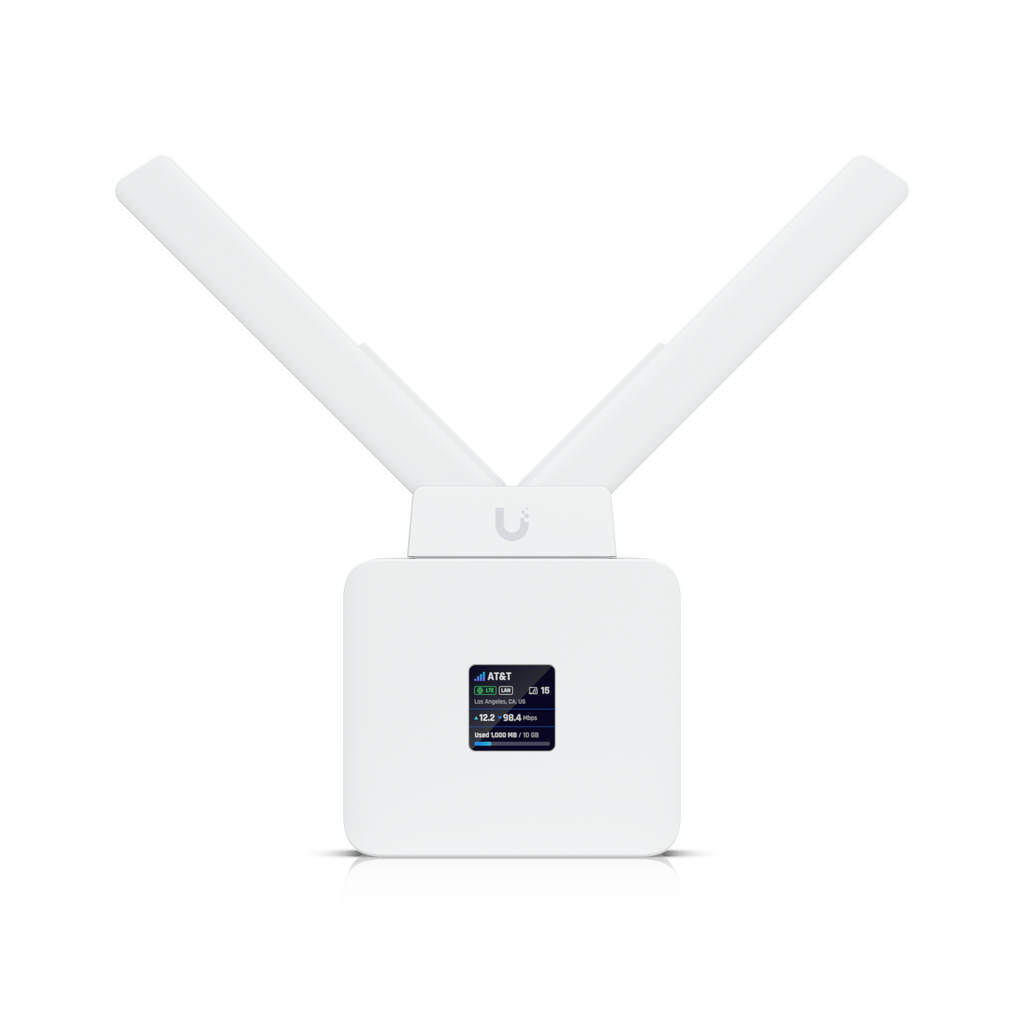

Touchscreen Control – Integrated 1.3" touchscreen for easy management and monitoring.
-
Flexible Powering – PoE+, USB-C, or 4-pin DC power input with adapter included.
-
GPS Enabled – Integrated GPS support for advanced networking applications.
-
Certified & Compliant – FCC, IC, PTCRB, AT&T certified and NDAA compliant.

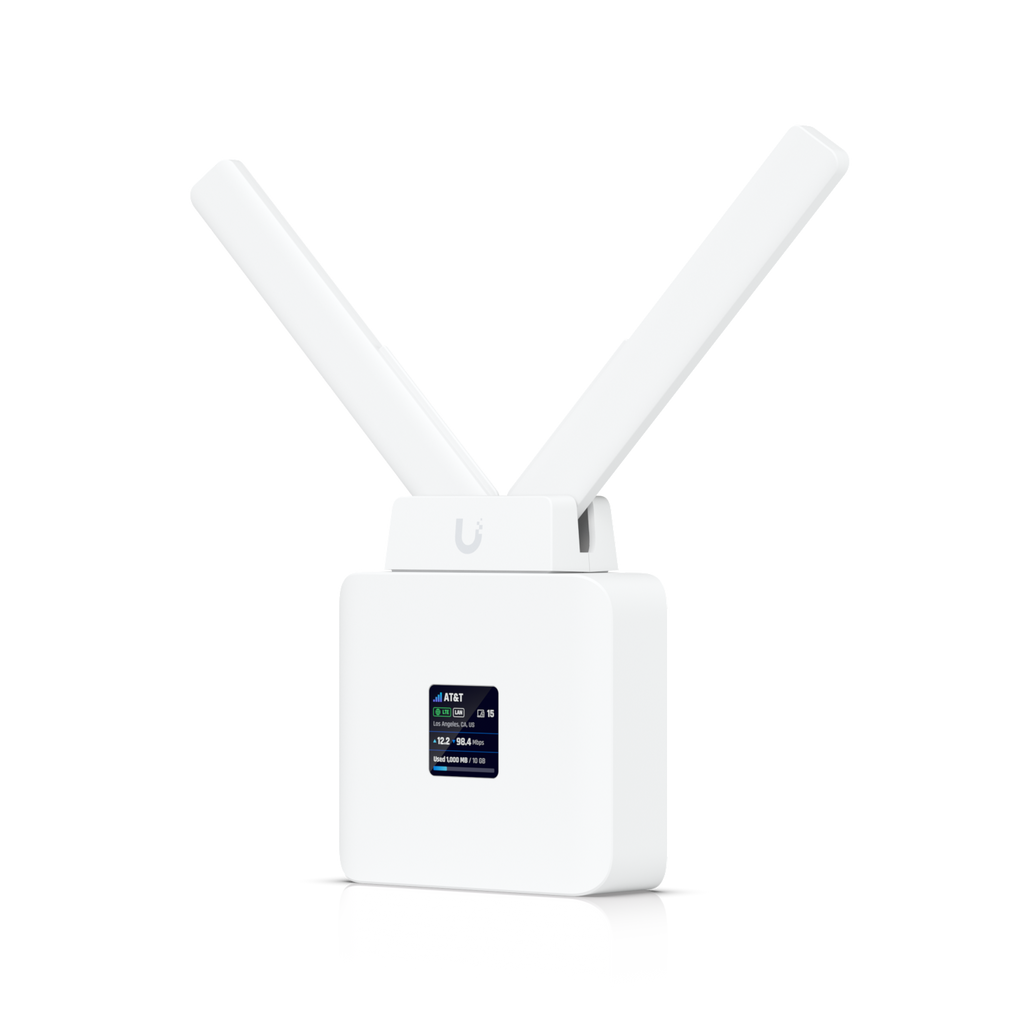

The Ubiquiti Networks UMR-US Mobile Router delivers reliable LTE connectivity and flexible networking in a compact, enterprise-ready form factor.
Equipped with dual Gigabit Ethernet ports, LTE Cat 4 radio, and WiFi 4, it provides secure WAN access with support for priority and fallback. The router comes with a pre-installed AT&T nano SIM for instant deployment, making it an excellent choice for mobile, branch office, or backup connectivity.
Featuring a 1.3" touchscreen for management, VPN support, firewall functionality, and flexible power options including PoE+, USB-C, and DC input, the UMR-US is built for modern mobile networking needs.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UMR-US |
| UPC | 810010076885 |
| Dimensions | 190 × 89.8 × 28.8 mm (7.4 × 3.5 × 1.1") |
| Weight | 257 g (9.1 oz) without mount; 303 g (10.7 oz) with mount |
| Networking Interfaces | 2 × GbE RJ45, LTE Cat 4, WiFi 4 |
| SIM | Pre-installed AT&T nano SIM |
| LTE Bands | B2, B4, B5, B12, B14, B66 |
| WiFi Standard | WiFi 4 (802.11n) |
| WiFi Data Rates | 802.11b: 1–11 Mbps 802.11g: 6–54 Mbps 802.11n: 6.5–150 Mbps |
| LTE Throughput Speed | Download: 150 Mbps / Upload: 50 Mbps |
| GPS | Integrated GPS |
| Antennas | 1 × External LTE antenna (TS9 male), Internal WiFi, Internal GPS |
| Max TX Power | 19 dBm |
| WiFi MIMO | 1 × 1 |
| Display | 1.3" touchscreen |
| Max. Power Consumption | 9W |
| Power Methods | PoE+ (48–54V DC), USB Type-C (5V DC, 3A), 4-pin ATX DC (9V DC, 1A) |
| Power Supply | USB Type-C, 5V DC, 3A (adapter included) |
| Enclosure Material | Polycarbonate, Aluminum Alloy |

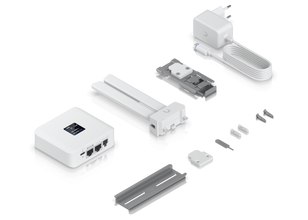

| Mount Options | Wall, DIN Rail (mounts included) |
| Operating Conditions | -20 to 45°C (-4 to 113°F), 5–95% noncondensing humidity |
| Certifications | FCC, IC, PTCRB, AT&T |
| NDAA Compliant | Yes |
