Features
-
8 × 2.5Gb PoE+ Ports – Each port delivers up to 32W with a total 120W budget.
-
2 × 10Gb SFP+ Uplinks – High-speed fiber connectivity for enterprise backhaul.
-
High Performance – 80 Gb/s switching capacity, 40 Gb/s non-blocking throughput, and 60 Mpps forwarding rate.
-
Advanced Layer 2 & 3 Features – Includes VLANs, static routing, DHCP server, inter-VLAN routing, ACLs, and IGMP management.
-
Touchscreen Management – Built-in 1.3" LCM color display with augmented reality support via UniFi Network app.
-
Silent Operation – Fanless design for quiet desktop or wall-mounted deployment.
Expand your business network with the UniFi Switch Enterprise 8, an advanced 8-port 2.5Gb PoE+ managed switch with dual 10Gb SFP+ uplinks. Delivering high power, ultra-fast throughput, and intelligent management features, it's perfect for powering access points, IP cameras, and VoIP systems while keeping your network scalable and silent.

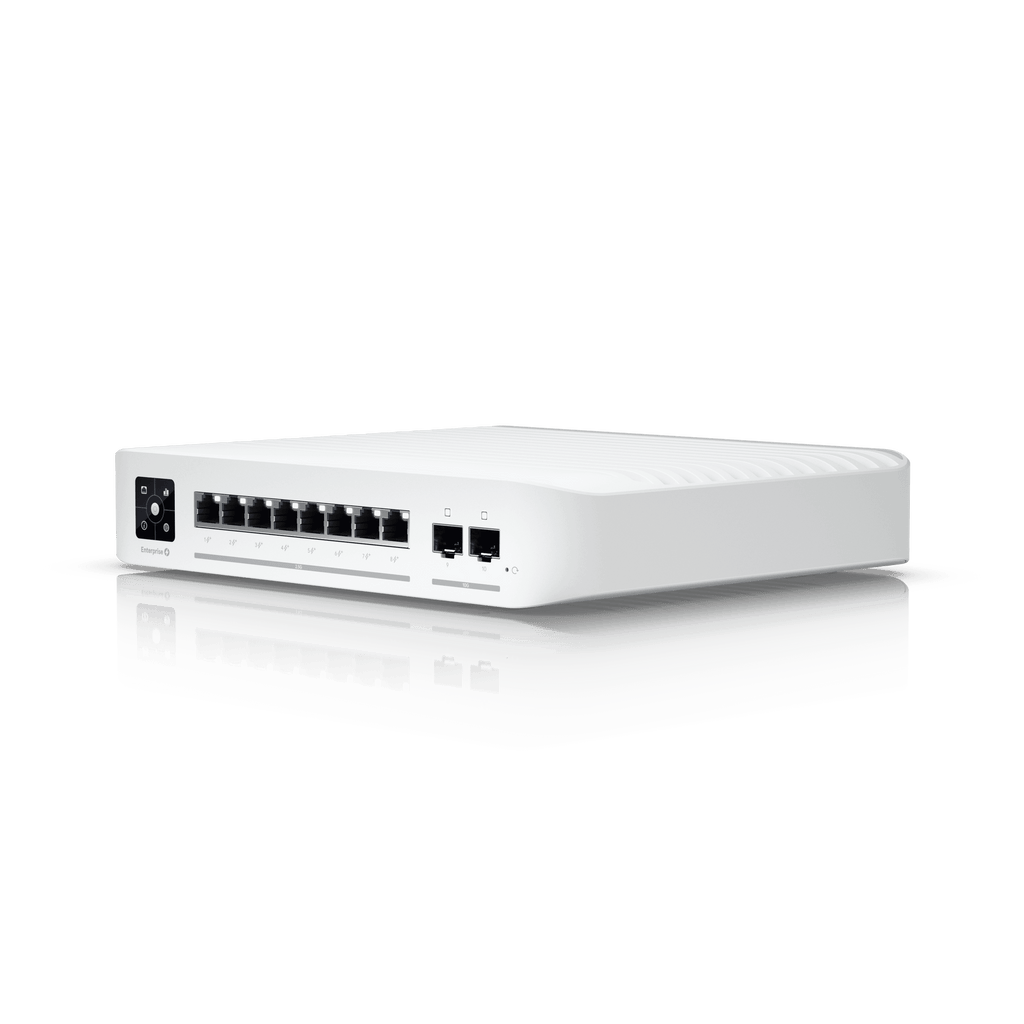

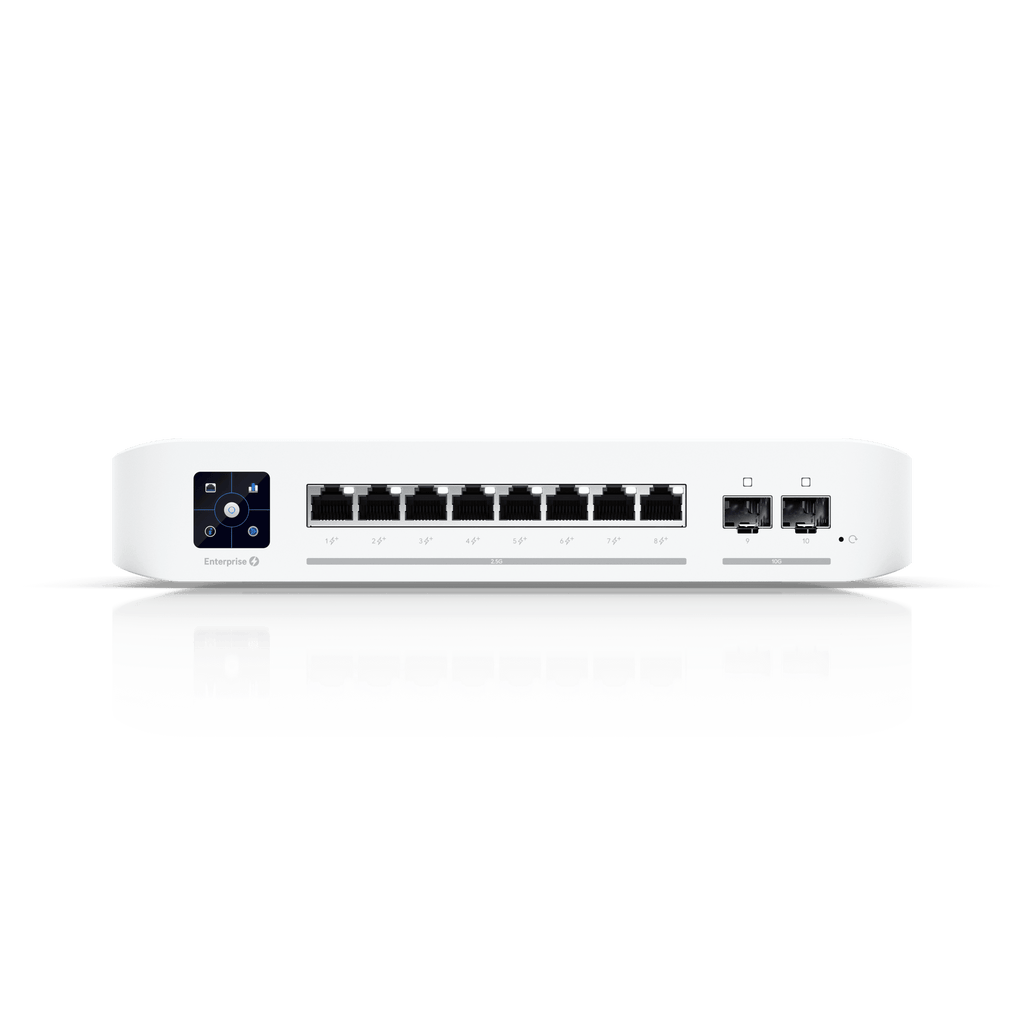

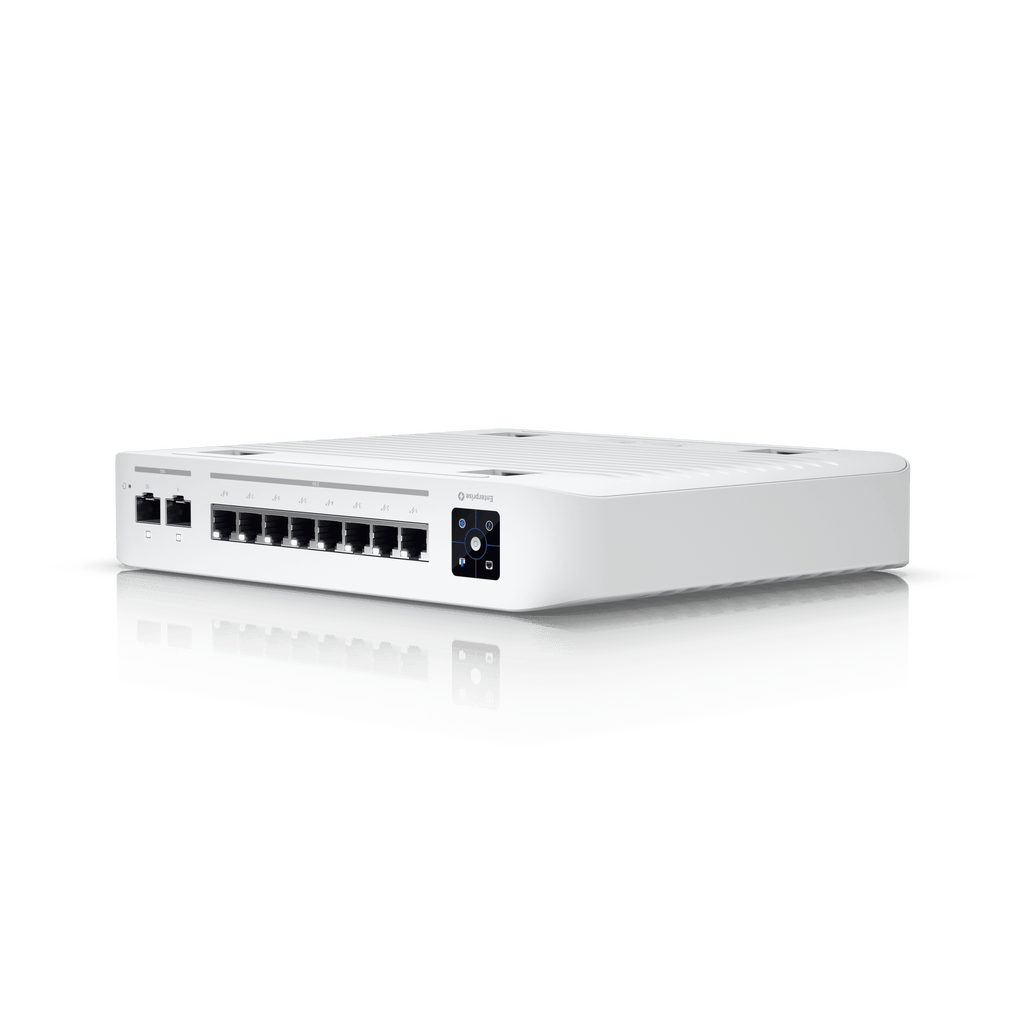

The Ubiquiti UniFi USW-ENTERPRISE-8-POE is an 8-Port 2.5Gb PoE+ Managed Switch with two 10Gb SFP+ uplinks for high-speed connectivity. It delivers up to 32W per port with a total 120W PoE budget, powering cameras, access points, and VoIP phones with ease. With silent fanless cooling, UniFi Controller integration, and a 1.3” touchscreen, it offers enterprise-grade performance in a compact design.
Power your business network with the Ubiquiti UniFi USW-ENTERPRISE-8-POE, an 8-Port 2.5Gb PoE+ Managed Switch with dual 10Gb SFP+ uplinks. Delivering up to 32W per port and a 120W PoE budget, it supports cameras, access points, and VoIP phones with ease. Featuring silent operation, UniFi Controller integration, and a 1.3” touchscreen with AR management, it offers advanced Layer 3 switching and reliable high-speed performance.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | USW-ENTERPRISE-8-POE |
| UPC | 810010074744 |
| Uplink / Interface | 8 × 2.5GbE RJ45 PoE+; 2 × 10Gb SFP+ |
| PoE per Port | Up to 32W (PoE+) |
| PoE Power Budget | 120W |
| Switching Capacity | 80 Gb/s (40 Gb/s non-blocking) |
| Forwarding Rate | 59.52–60 Mpps |
| Packet Buffer Size | 1.5 MB |
| MAC Address Table Size | 16,000 |
| Layer 3 Features | DHCP server, inter-VLAN routing, static routing |
| Layer 2 Features | LACP, STP/RSTP, IGMP snooping, 802.1X, ACLs, QoS, port mirroring, jumbo frames, voice VLAN, loop protection |

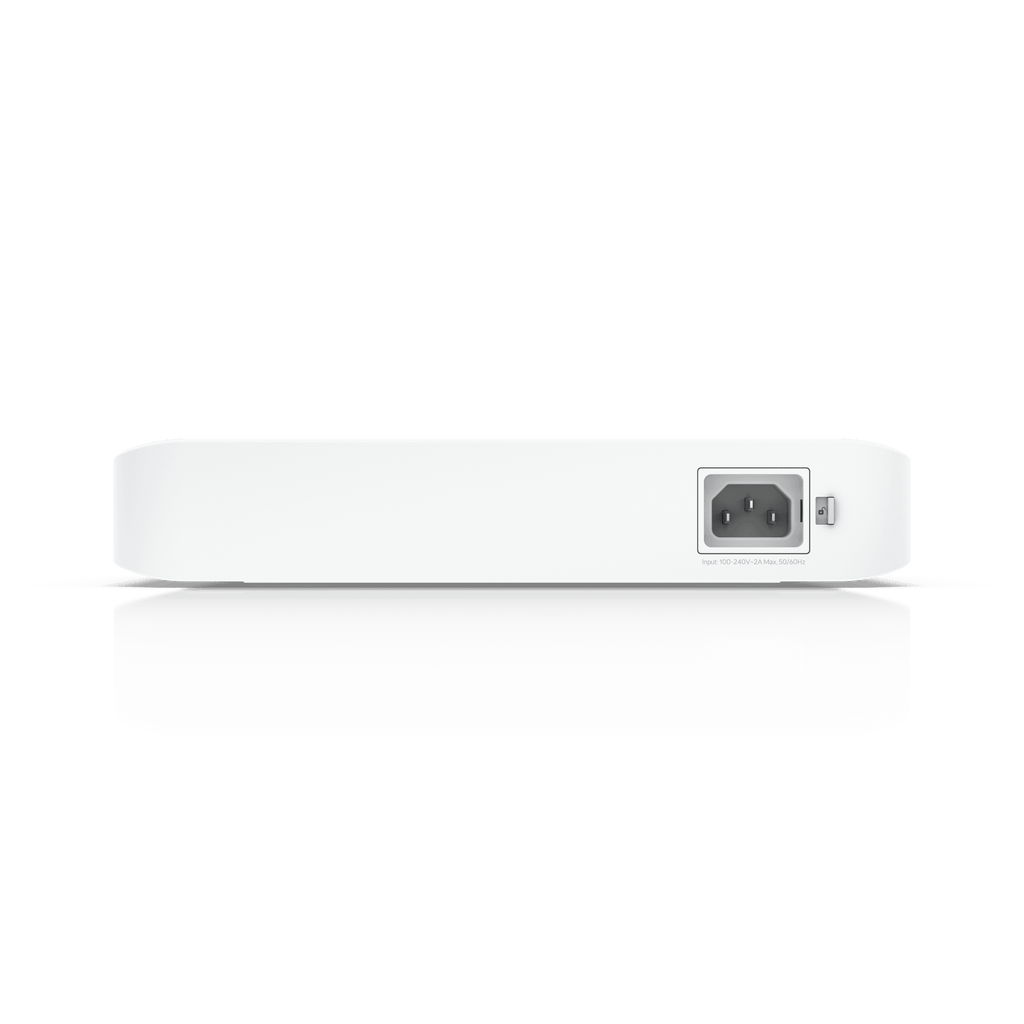

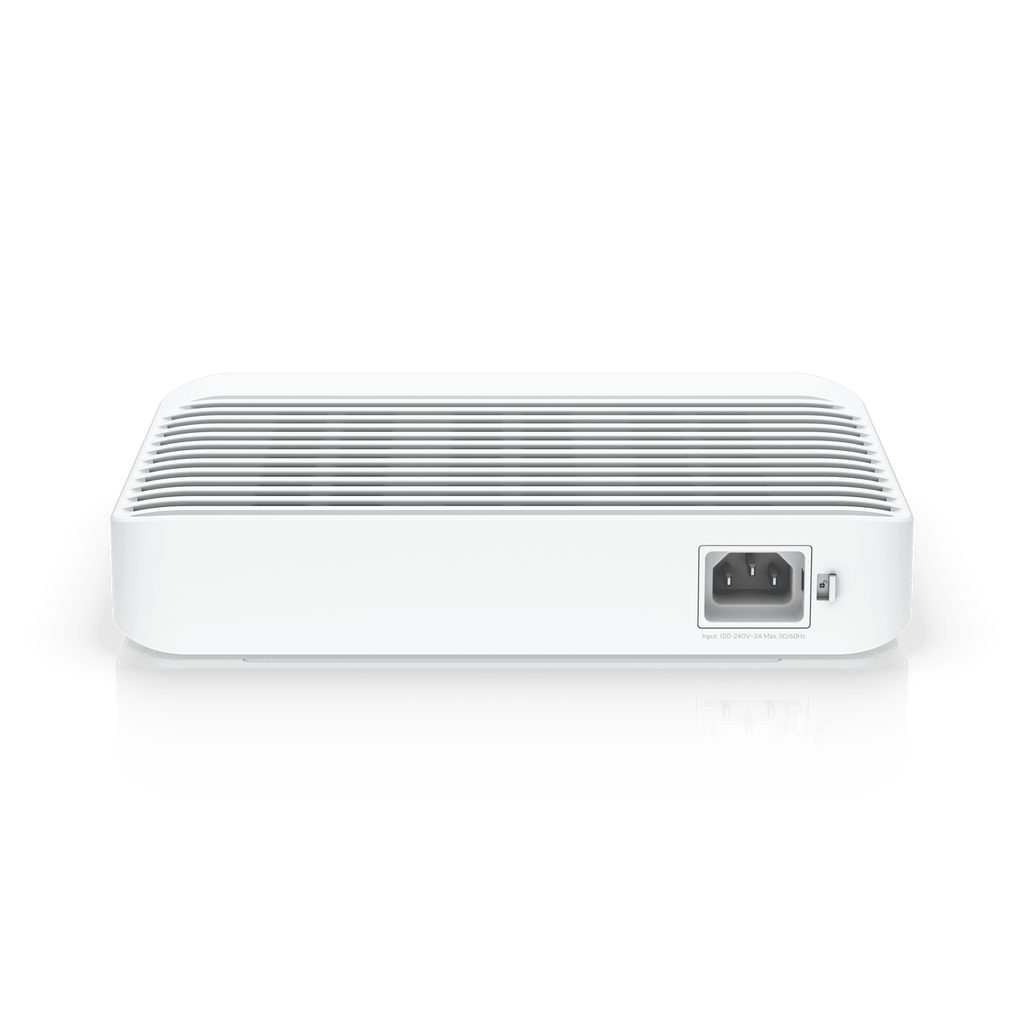

| Power Supply | AC/DC internal, 150W; 100–240V AC input |
| Max Power Consumption | 30W (excl. PoE) / 150W (incl. PoE) |
| Dimensions | 200 × 248 × 44 mm (7.9 × 9.8 × 1.7") |
| Weight | 2.4 kg (5.3 lb) |
| Enclosure / Mount Material | Polycarbonate |

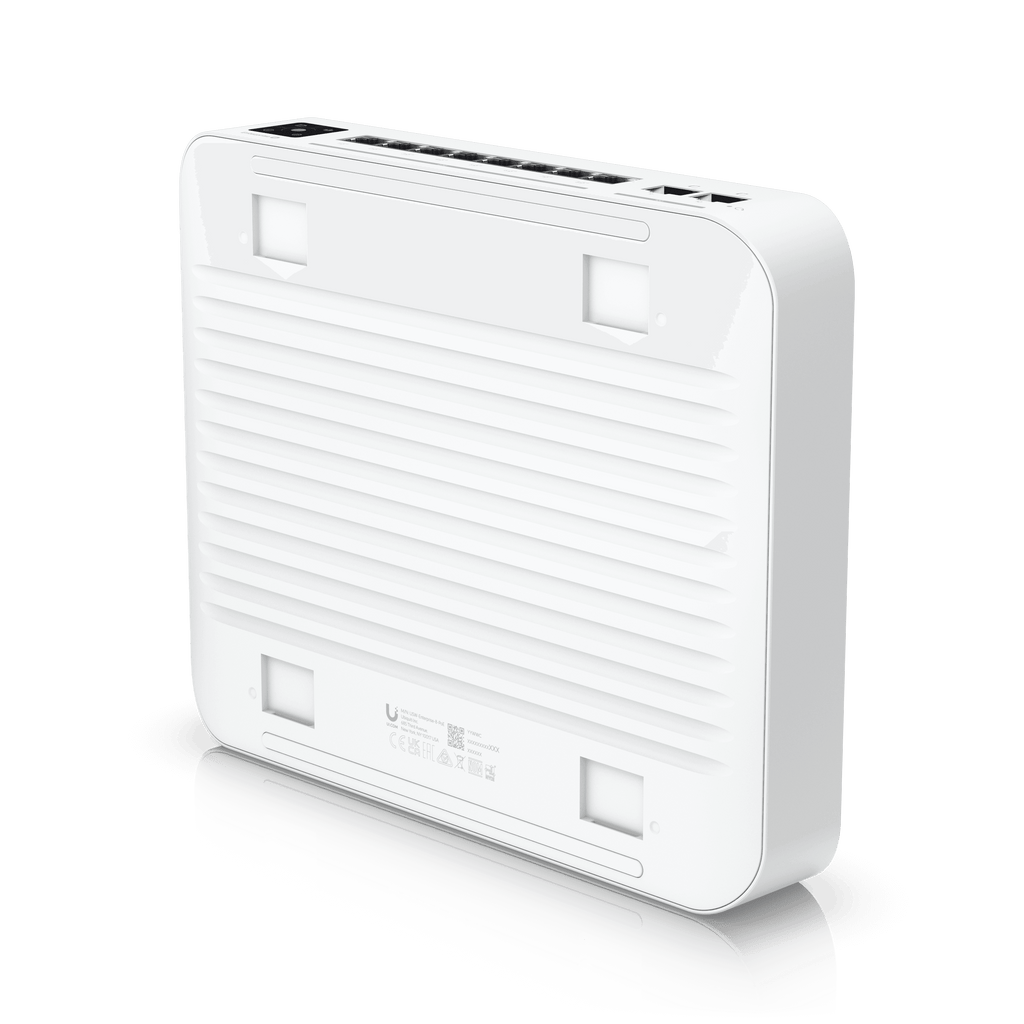

| Mounting Options | Desktop or wall-mountable |
| Operating Conditions | -5 to 45°C (23 to 113°F); 10–90% noncondensing humidity |
| Certifications | CE, FCC, IC, Anatel; NDAA compliant |
| Management | 1.3" LCM touchscreen; UniFi Network (v6.3.51+); AR support |
| ESD Protection | Air: ±16kV; Contact: ±12kV |
