Features
-
All-in-One Solution – Gateway, 8-port router, and NVR combined in a 1U rackmount design.
-
High Performance – 2.0 GHz Quad-Core ARM Cortex-A57, 8 GB DDR4 RAM, 32 GB eMMC, and 128 GB SSD.
-
Scalable – Supports 200+ UniFi devices, 2000+ clients, and up to 50 HD cameras.
-
Advanced Security – Stateful firewall, IDS/IPS with 55,000+ signatures, content and ad filtering.
-
VPN & SD-WAN – Supports WireGuard, OpenVPN, L2TP, IPsec, Teleport, and license-free SD-WAN.
-
Multi-WAN Resilience – Redundant WAN with failover, load balancing, and LTE backup support.
-
Flexible Storage – Built-in 128 GB SSD plus two 3.5" HDD bays for NVR expansion.
-
Full UniFi Suite – Manage UniFi Network, Protect, Access, Talk, and Connect applications.
-
User-Friendly Monitoring – 1.3" touchscreen display for real-time system status.
-
Enterprise Reliability – VRRP shadow mode failover, DC backup, and rugged SGCC/aluminum chassis.

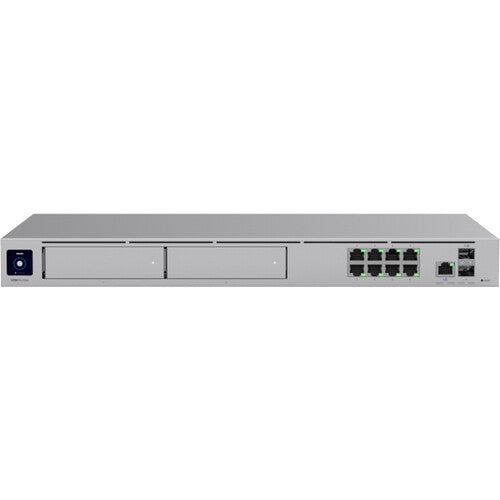

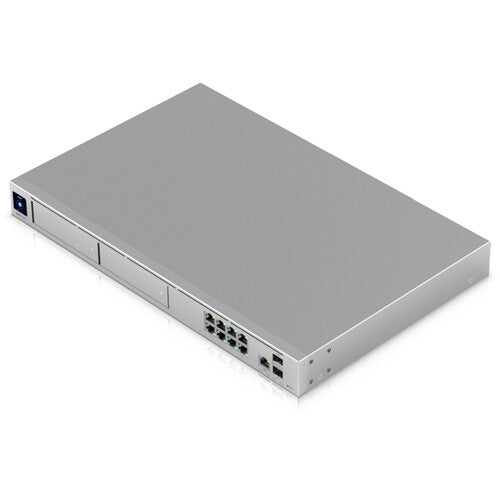

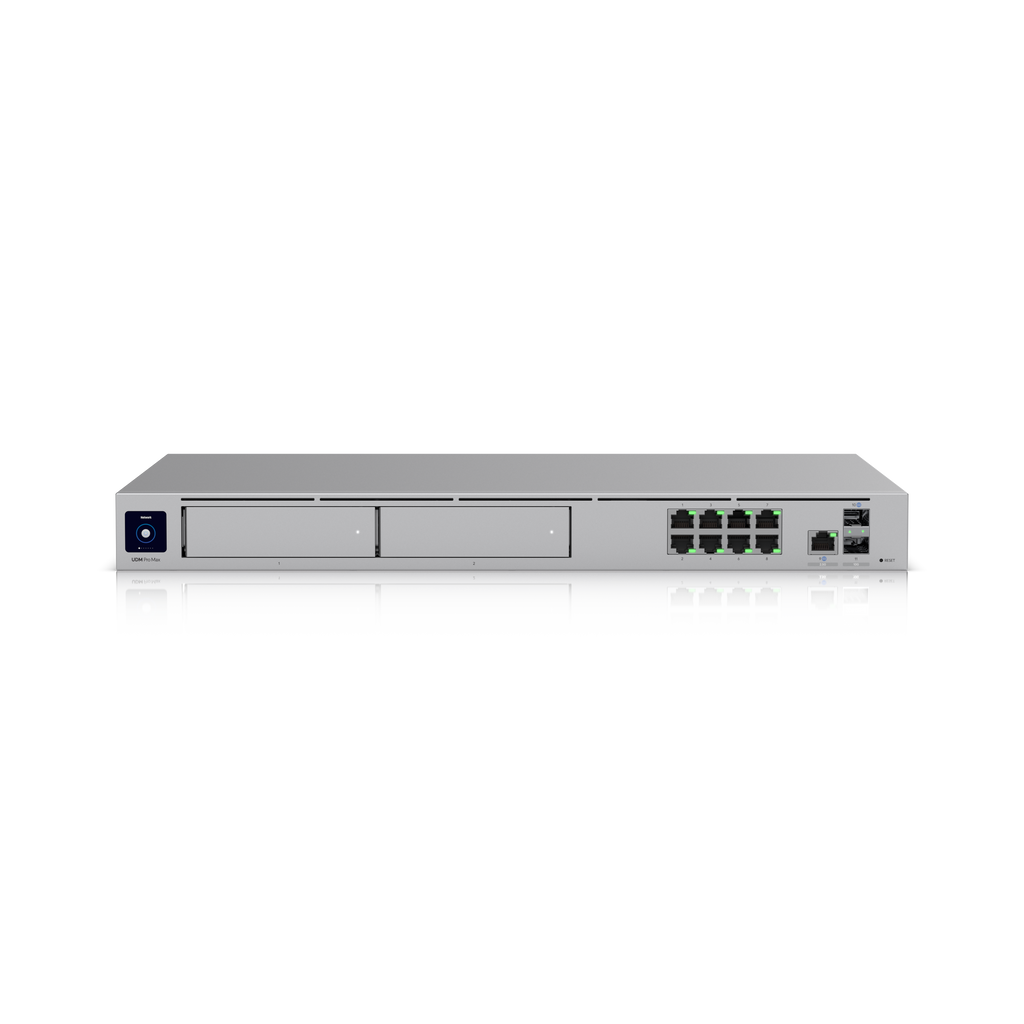

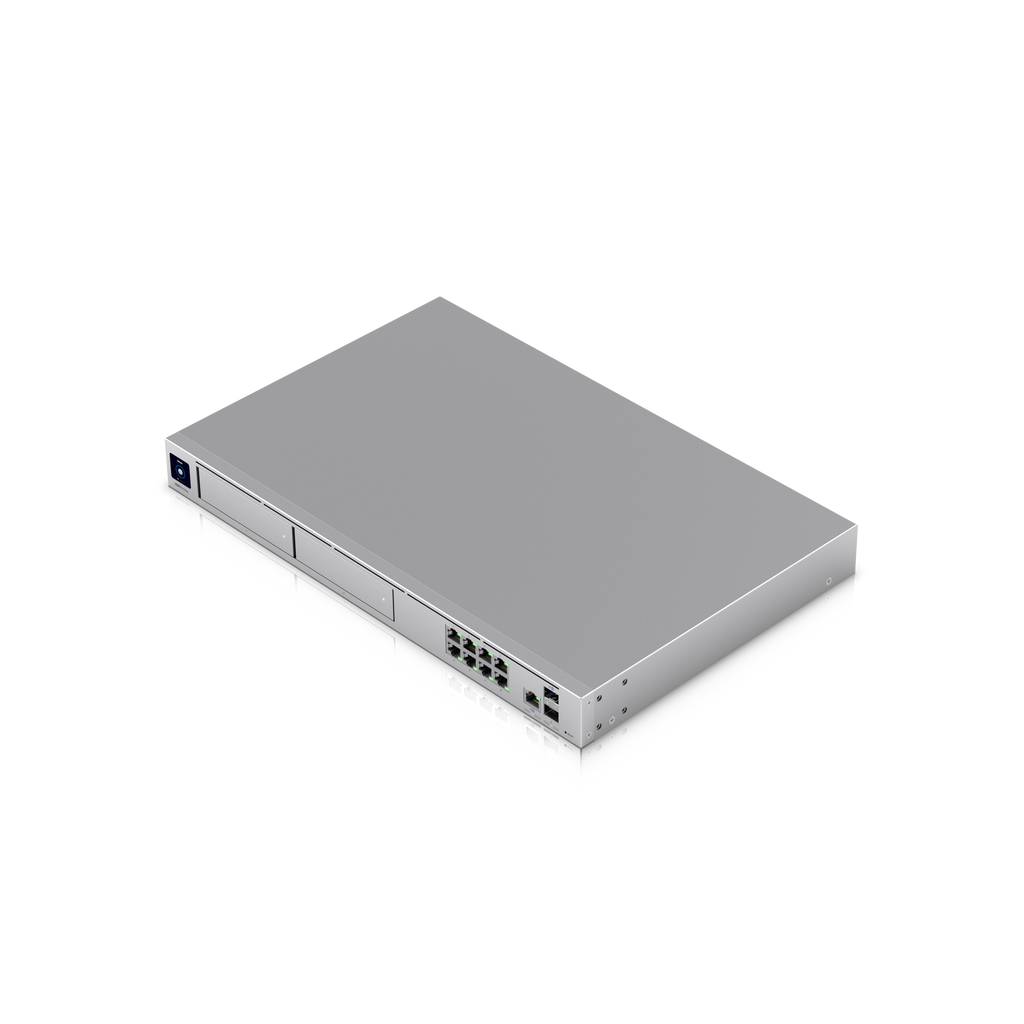

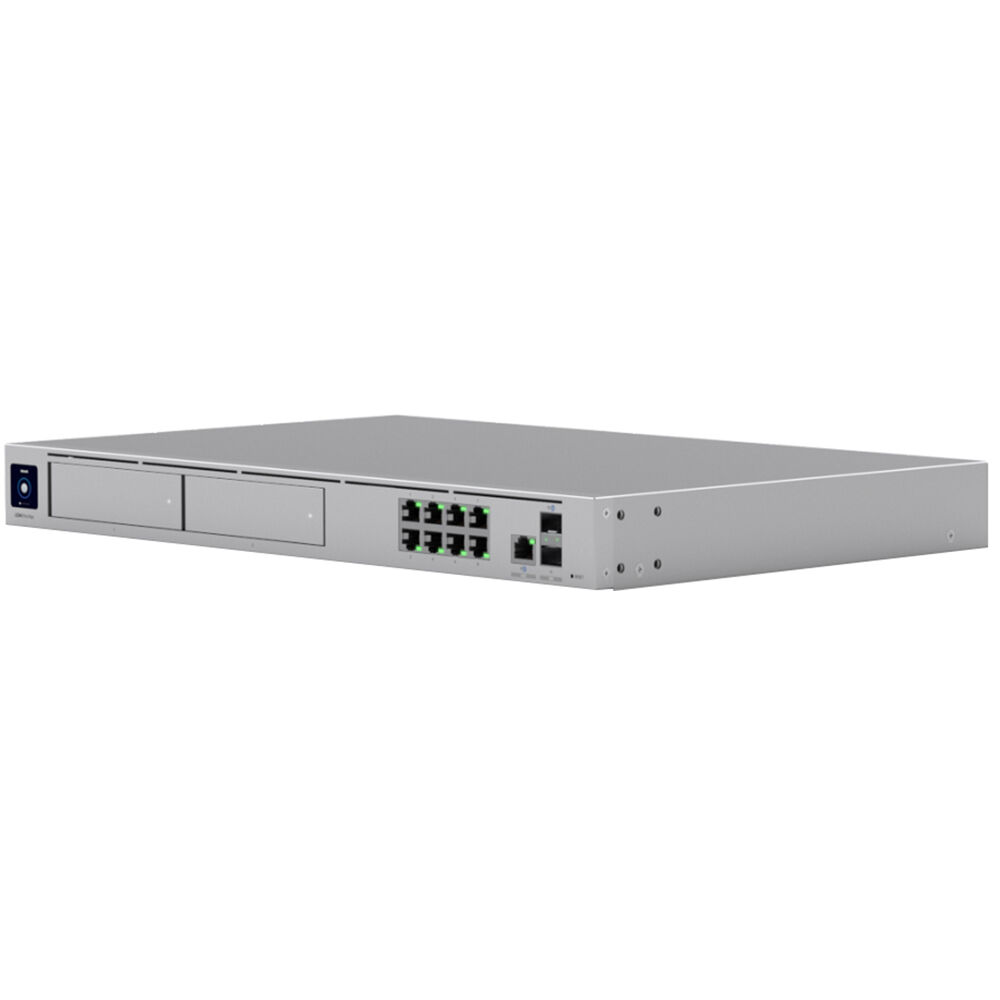

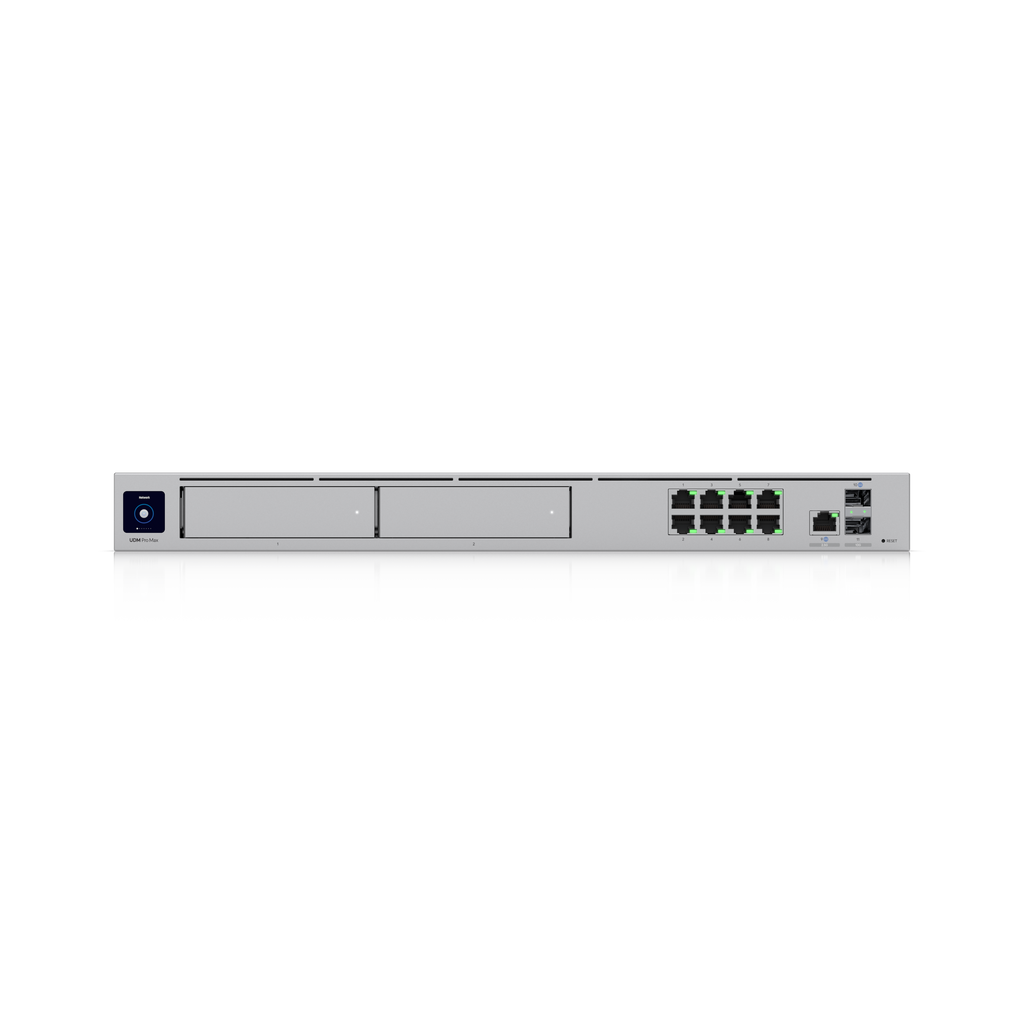

The Ubiquiti Networks UniFi Dream Machine Pro Max is an all-in-one enterprise-class gateway, router, and NVR solution designed to streamline small to medium business networks. Featuring a powerful 2.0 GHz Quad-Core ARM Cortex-A57 processor, 8 GB DDR4 memory, and 32 GB onboard eMMC storage with an integrated 128 GB SSD, the Pro Max delivers double the UniFi device and client capacity of the Dream Machine Pro/SE.
Supporting up to 200 UniFi devices, 2000+ clients, and 50 HD or 25 2K cameras, this 1U rackmount system combines advanced network management, scalable storage, and robust security into a single device.
With redundant WAN failover, SD-WAN, VPN, firewall, and intrusion prevention, the Dream Machine Pro Max ensures reliable, secure, and high-performance connectivity for mission-critical networks.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UniFi Dream Machine Pro Max |
| UPC | 810084693247 |
| Dimensions | 442.4 × 43.7 × 285.6 mm (17.4 × 1.7 × 11.2") |
| Weight | 4.7 kg (10.4 lb) |
| Processor | Quad-Core ARM Cortex-A57 at 2.0 GHz |
| Memory | 8 GB DDR4 |
| Onboard Storage | 32 GB eMMC + 128 GB SSD |
| NVR Storage | 2 × 3.5" HDD bays (user-installed) |
| Networking Interfaces | 8 × 1 GbE RJ45 1 × 2.5 GbE RJ45 WAN 2 × 10G SFP+ (WAN/LAN) |
| IDS/IPS Throughput | 5 Gbps |
| Managed Devices | 200+ UniFi devices, 2000+ clients |
| Managed Cameras | 50 HD, 25 2K, 15 4K |
| Firewall | Stateful, Layer 7, DPI, content and ad filtering |
| VPN | WireGuard, L2TP, OpenVPN, IPsec, Teleport |
| SD-WAN | License-free SD-WAN, policy-based routing |
| Form Factor | Rack mount (1U) |
| Power Consumption | Max 60W |
| Power Method | Universal AC input 100–240V AC, 2A, 50/60 Hz USP-RPS DC input, 11.5V DC, 8.7A |
| Power Supply | Internal AC/DC, 100W |
| Enclosure / Mount Material | Aluminium CNC, SGCC steel |
| Display | 1.3" touchscreen LCM |
| Certifications | CE, FCC, IC, Anatel, SRRC |
| NDAA Compliant | Yes |
| Operating Conditions | -10 to 40°C (14 to 104°F), 5–95% noncondensing humidity |
