Features
-
High-Resolution Video – Captures 4MP (2688 × 1512) video at 30 fps for clear detail.
-
Night Vision – Integrated IR LEDs provide up to 20 m (65 ft) of visibility in the dark.
-
Wide Viewing Angle – Fixed lens with a 102.4° horizontal field of view.
-
AI Smart Detections – Detects people, vehicles, and animals with advanced motion analytics.
-
Seamless Integration – Works with UniFi Protect mobile and web applications.
-
Durable Housing – IK06-rated enclosure with aluminum alloy and polycarbonate build.
-

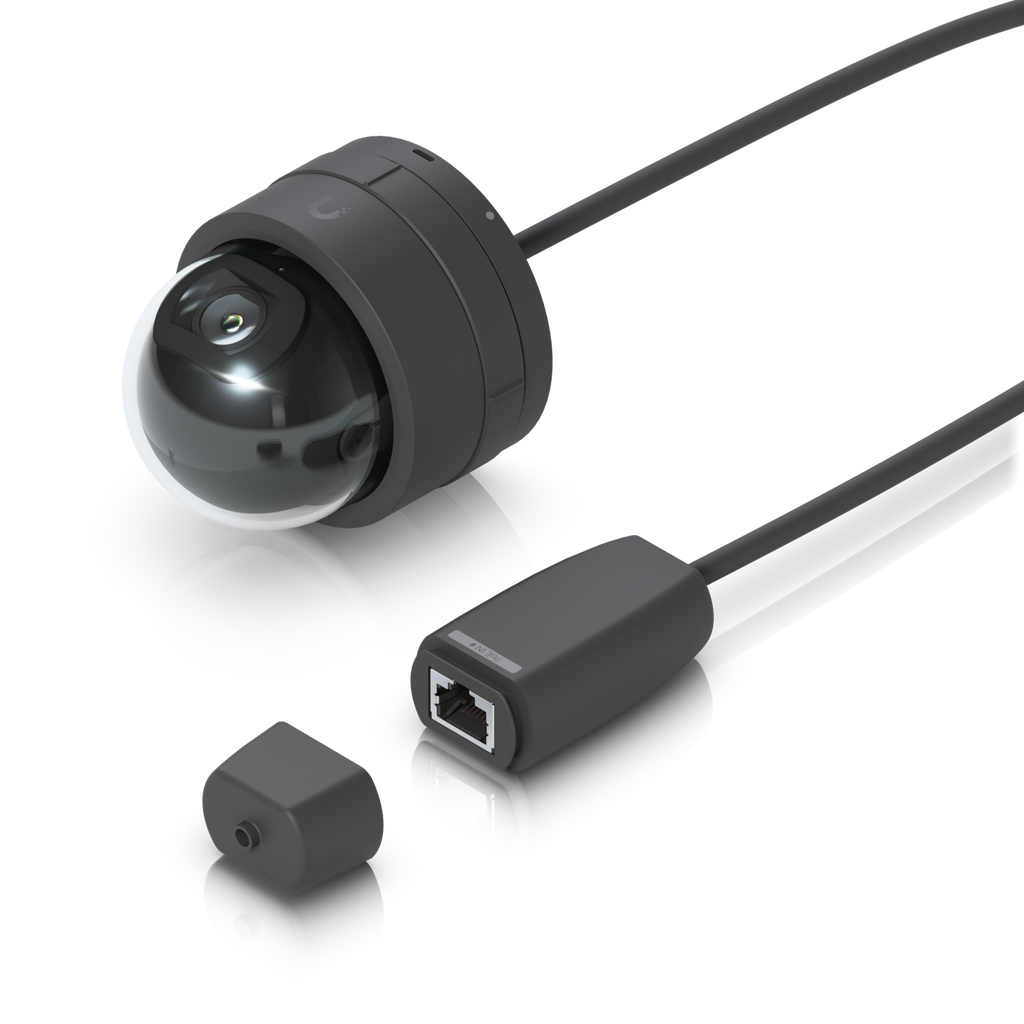

PoE Powered – Single-cable installation with 802.3af PoE support.
-
Flexible Mounting – Surface mount included; junction box and flush mounts available separately.
-
Secure & Compliant – NDAA compliant, CE/FCC/IC certified.

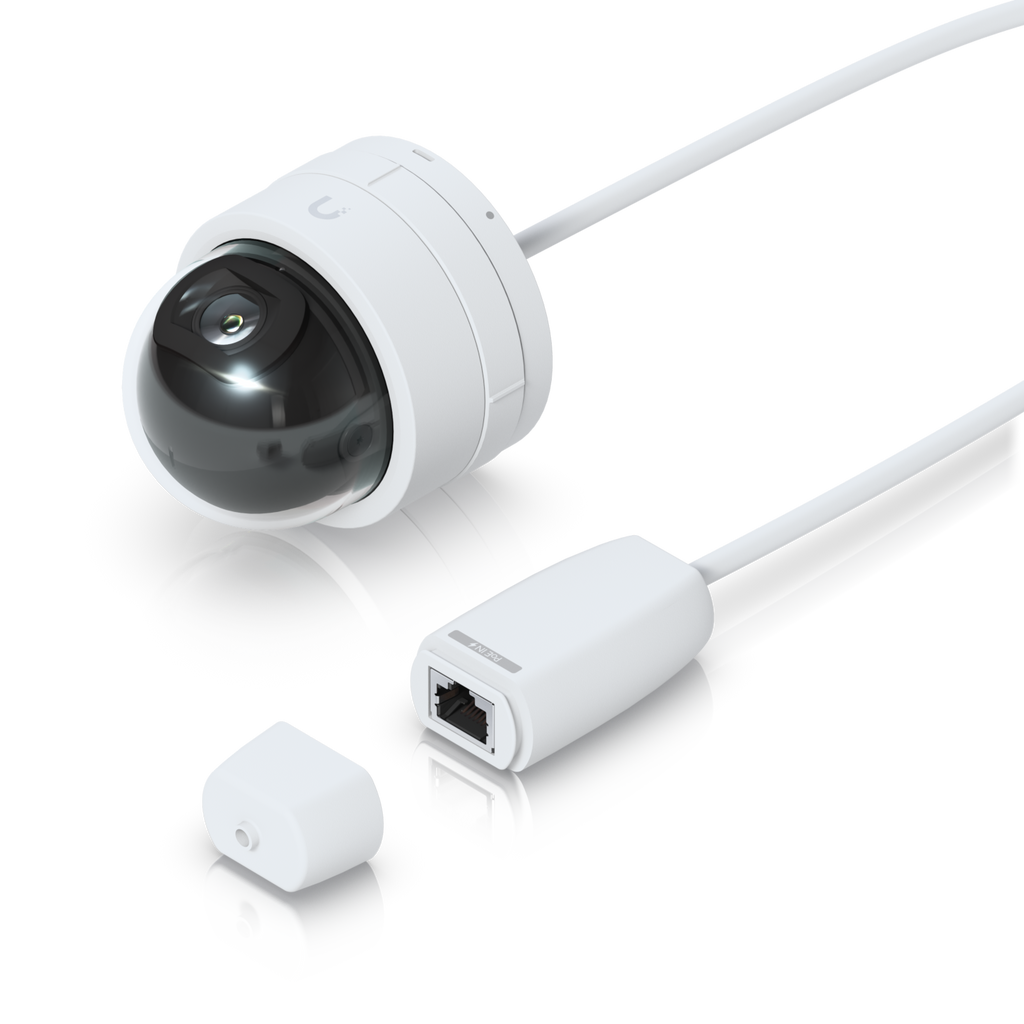

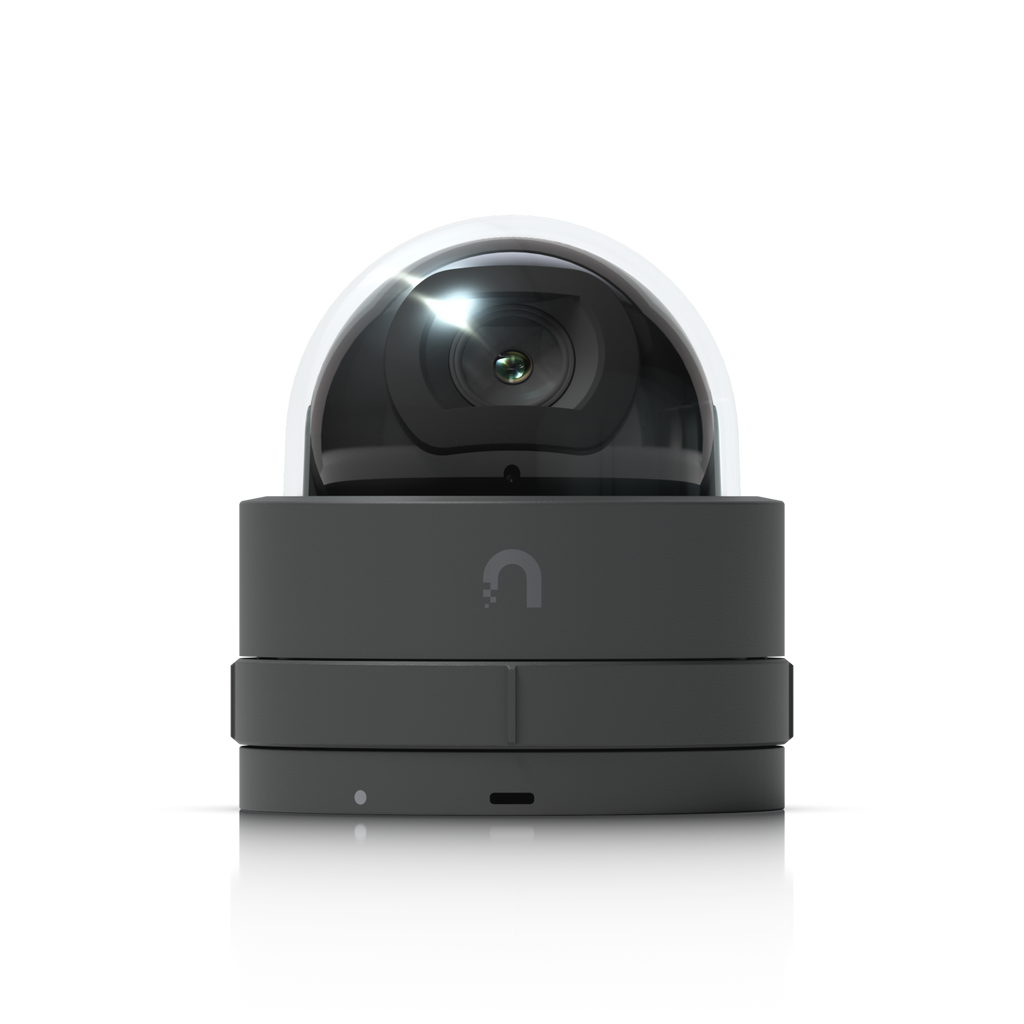

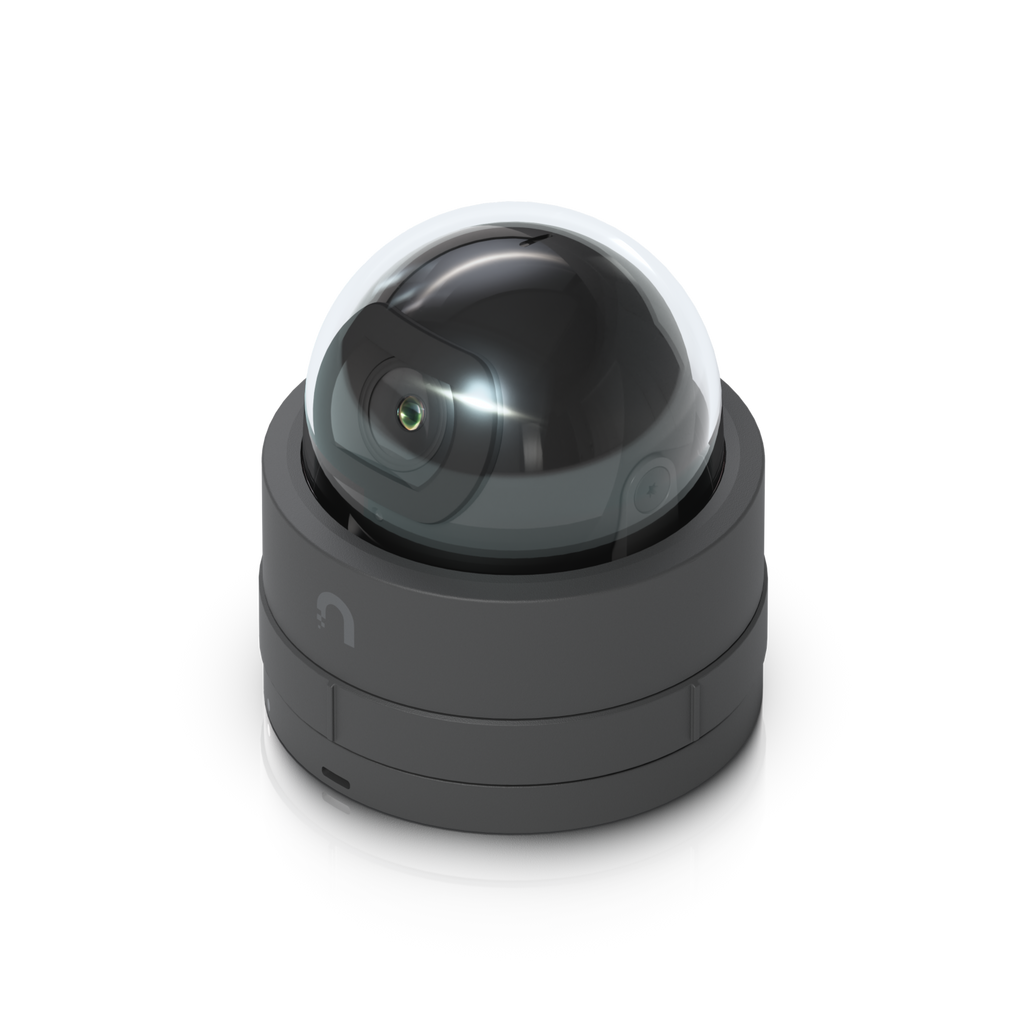

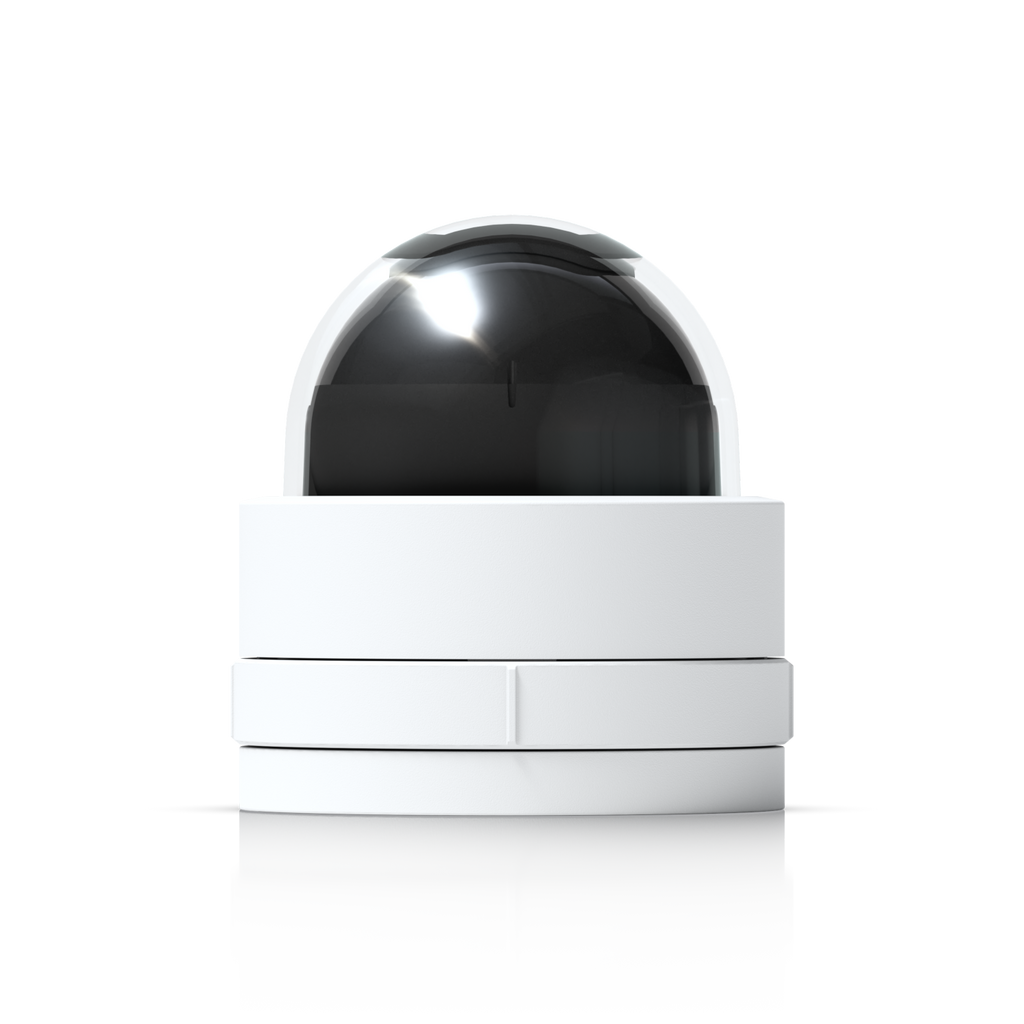

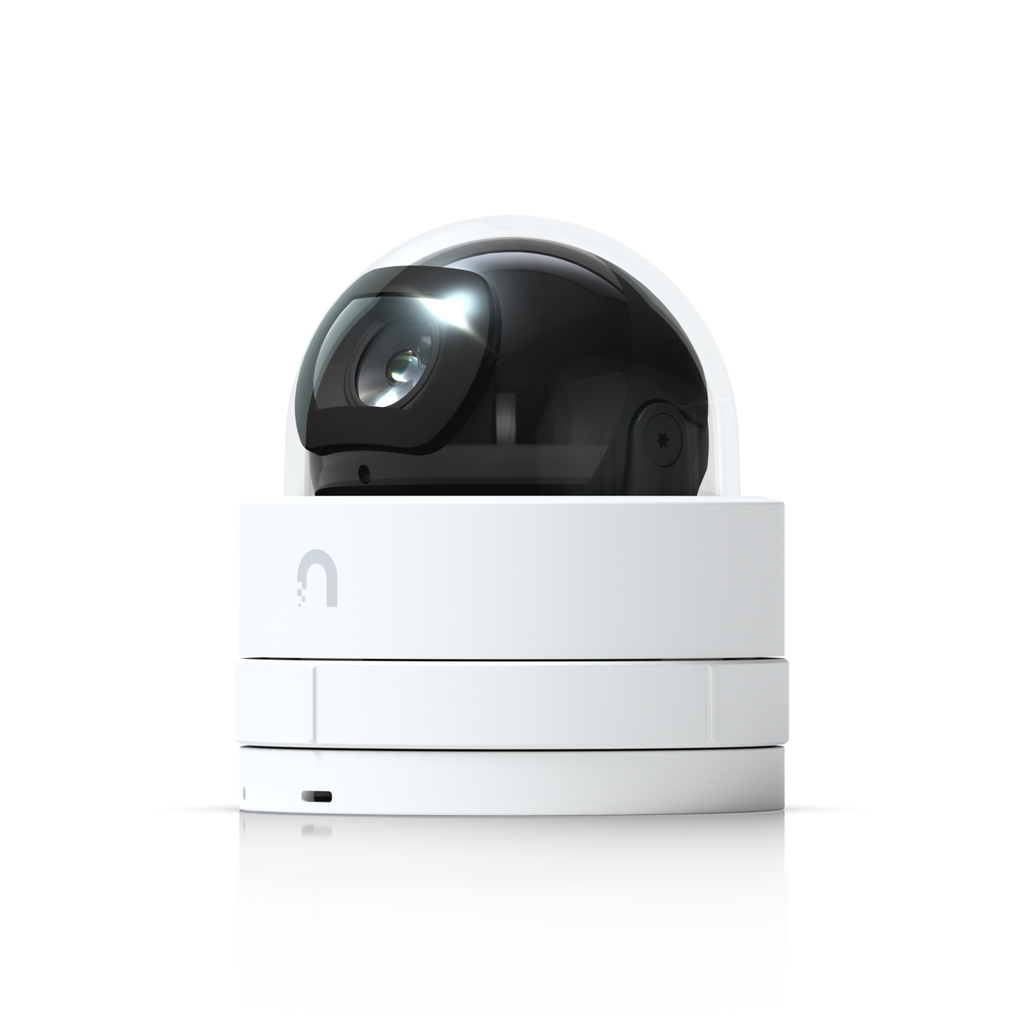

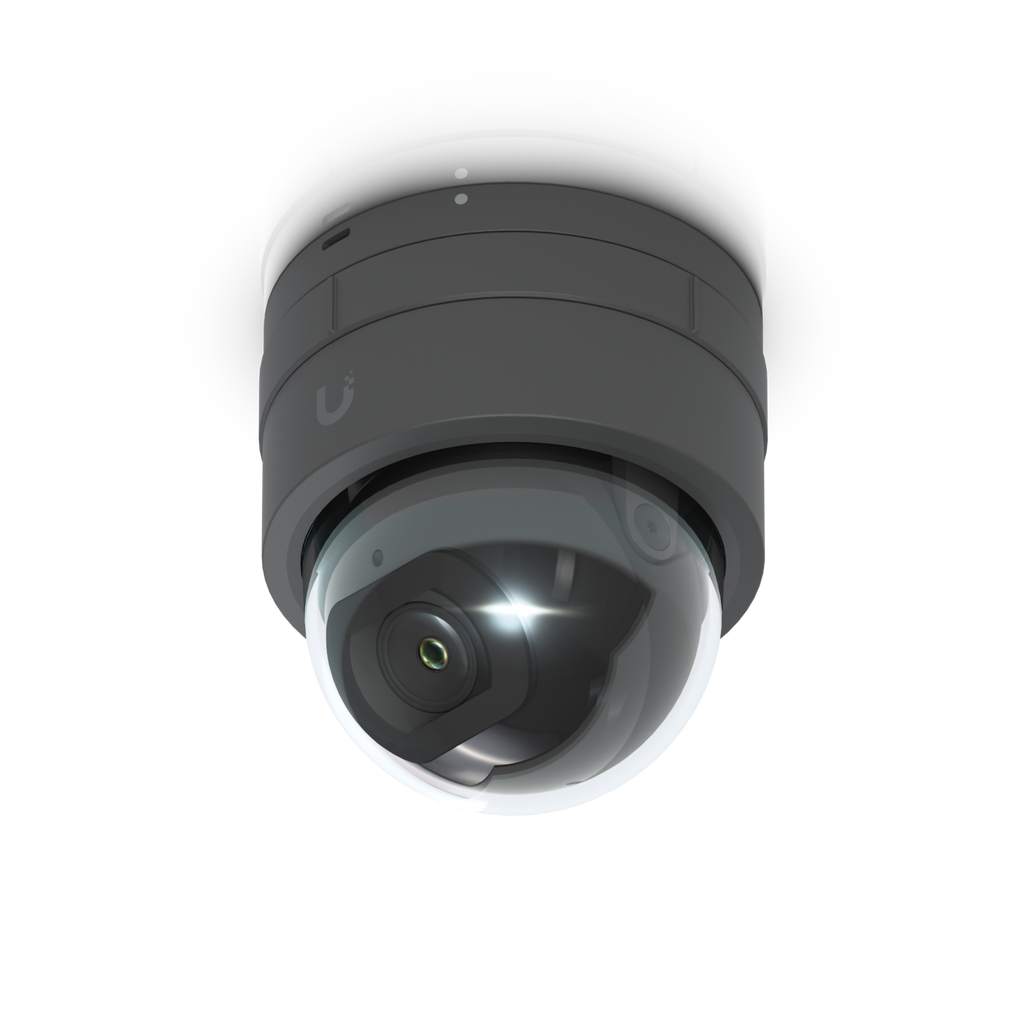

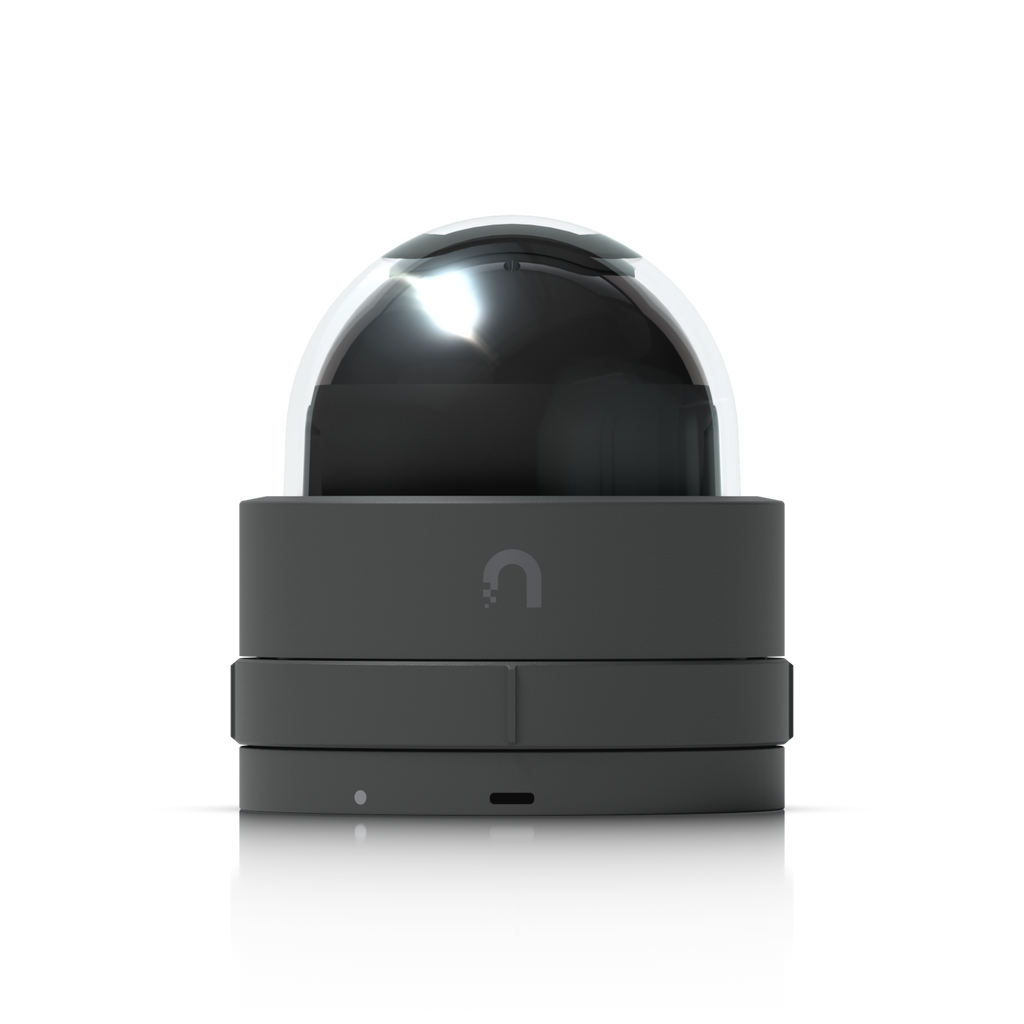

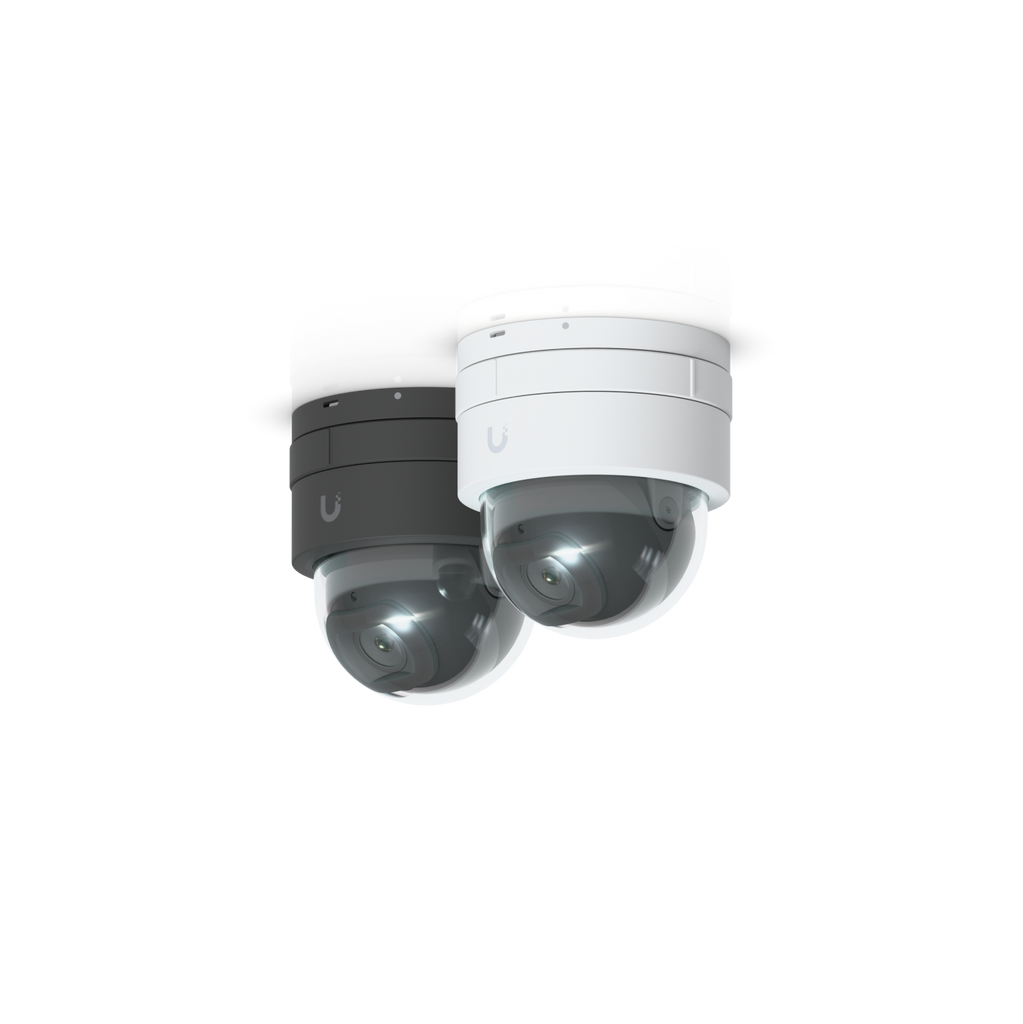

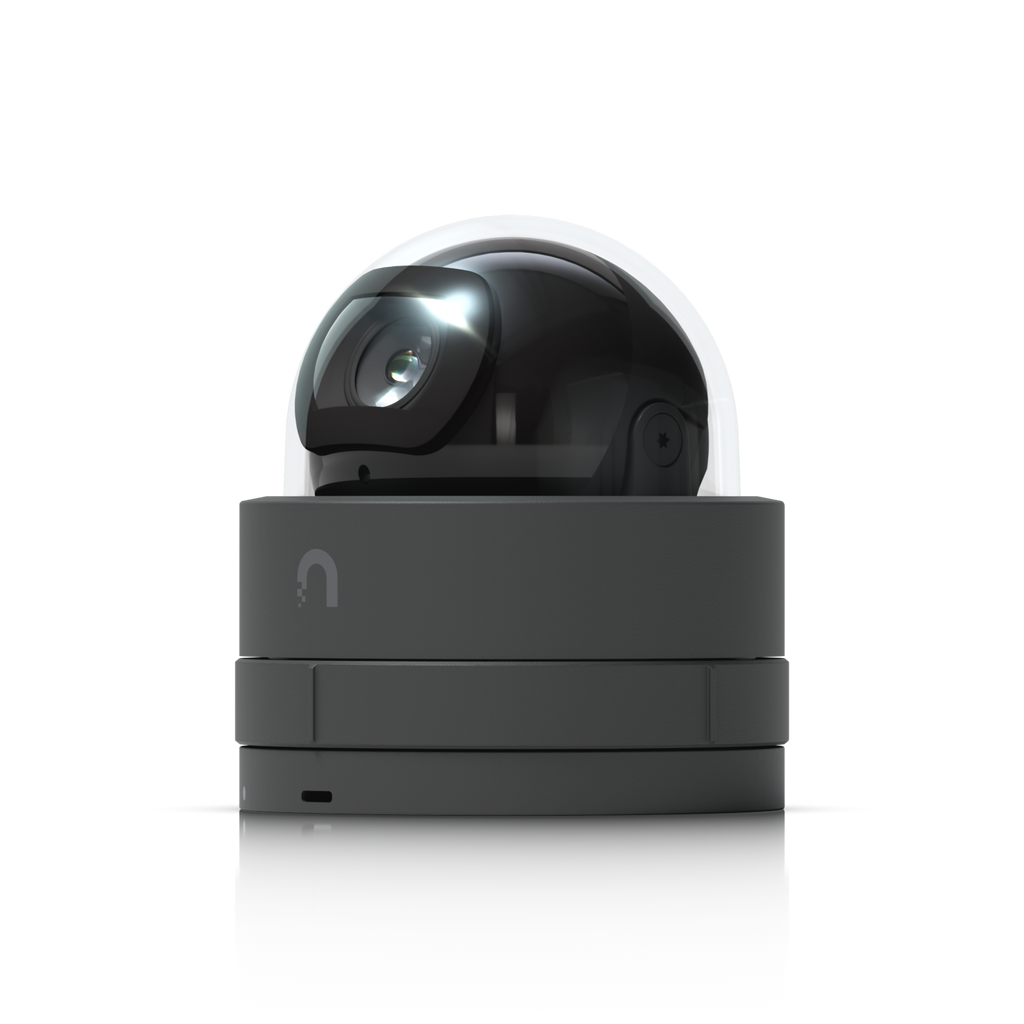

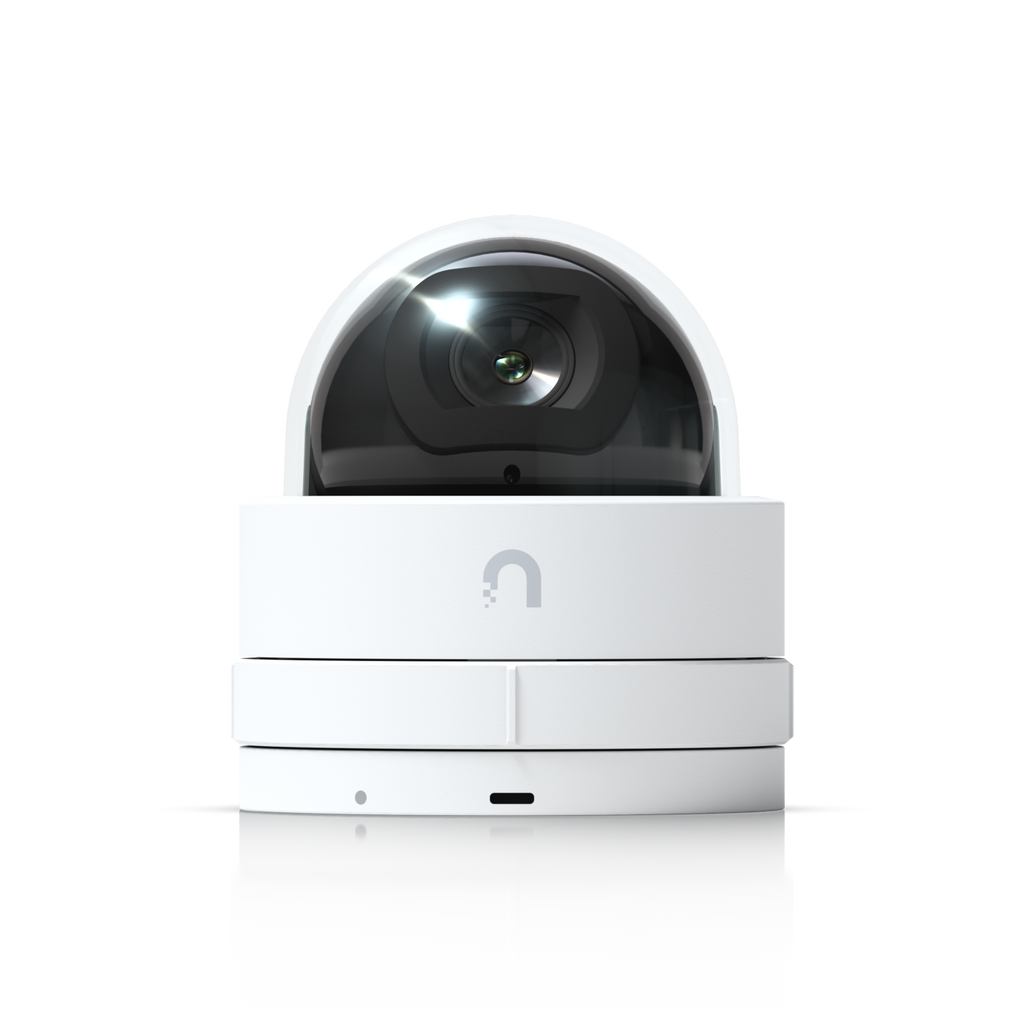

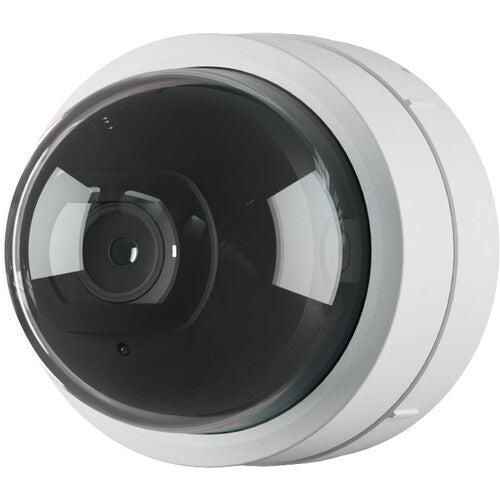

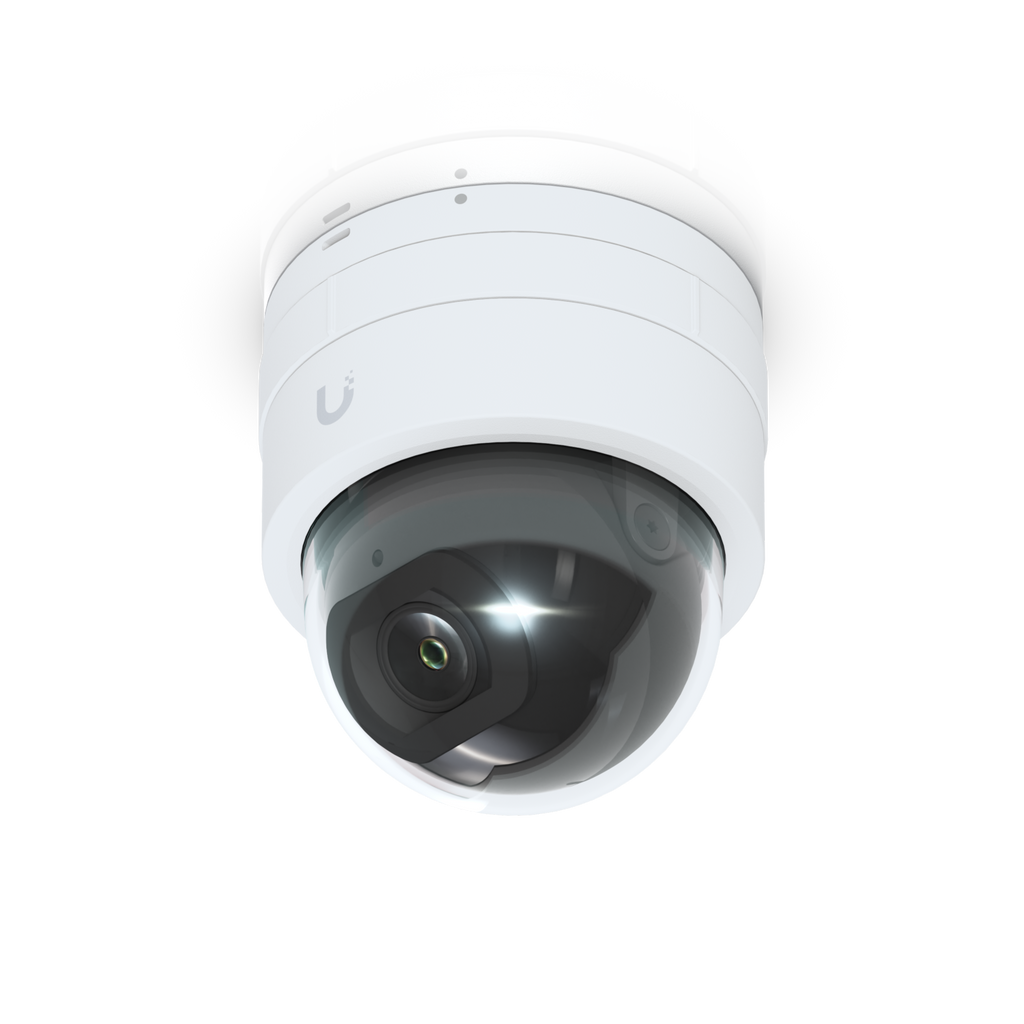

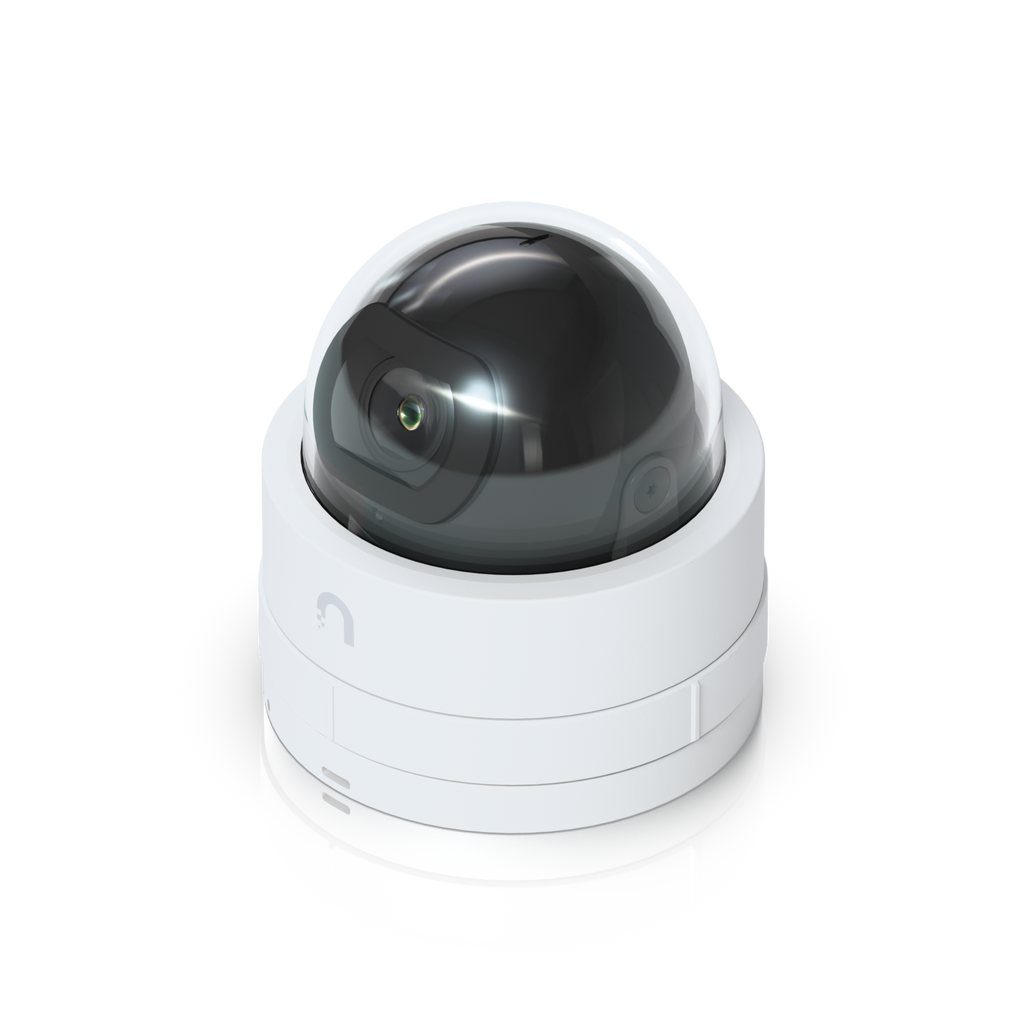

The Ubiquiti Networks UniFi Protect G5 Ultra is a compact indoor dome camera engineered for high-definition monitoring and seamless integration with the UniFi Protect ecosystem.
Delivering crisp 4MP video at 30 fps, this camera uses a 1/2.4" CMOS sensor and a fixed lens that provides a wide 102.4° horizontal field of view. Built-in IR LEDs with an IR cut filter enable up to 65 ft of night vision for reliable 24/7 coverage.
With advanced AI-based event detections, secure PoE connectivity, and a rugged IK06-rated housing, the G5 Ultra combines performance, durability, and ease of deployment. Manage and monitor footage conveniently through the UniFi Protect app or web application.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UVC-G5-ULTRA |
| UPC | 810084694213 |
| Dimensions | Ø63.6 × 68.2 mm (Ø2.5 × 2.7") |
| Weight | 175 g (6.2 oz) |
| Sensor | 1/2.4" CMOS |
| Lens | Fixed focal length |
| Field of View | H: 102.4° · V: 54.9° · D: 120.6° |
| Resolution | 4MP (2688 × 1512, 16:9) |
| Max. Frame Rate | 30 FPS |
| Night Vision | IR LED up to 20 m (65 ft) with IR cut filter |
| Smart Detections | People, Vehicles, Animals |
| Networking Interface | 1 × 10/100 MbE RJ45 (PoE) |
| Power Method | 802.3af PoE |
| Max. Power Consumption | 4.2W |
| Processor | Dual-core ARM Cortex-A7 |
| Enclosure Material | Aluminum alloy, Polycarbonate |

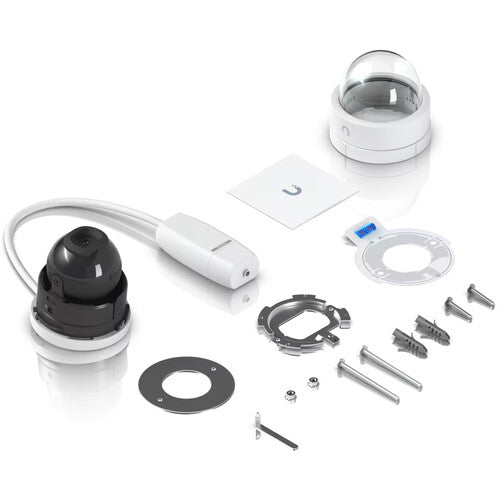

| Mounting Options | Surface mount (included), optional junction box, optional ultra flush mount |
| Tamper Resistance | IK06 rated |
| Operating Conditions | -20 to 40°C (-4 to 104°F), 10–90% noncondensing humidity |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
