Features:
-
Tri-Radio Wi-Fi 5 (802.11ac Wave 2) – Stunning performance with 12 spatial streams for massive concurrent connectivity.
-
Extreme Coverage – Supports over 1,500 clients across up to 465 m² (5,000 ft²).
-
Long-Distance Beamforming – Software-adjustable beamforming antennas with 10-dBi (wide) and 15-dBi (narrow) modes. Ultra-Rugged Outdoor Design – Built-to-last with IP67 weatherproofing; wall, pole, and VESA mounting included.
-
High-Speed Wired Backhaul – Includes 1 GigE port and 1 1/10 GbE ICM uplink for flexible connectivity.
-
Dedicated Security & Spectrum Radios – Enables real-time monitoring, intrusion detection, and airtime analytics
Elevate venue-grade connectivity with the Ubiquiti UniFi Wi-Fi BaseStation XG (UWB-XG-US)—a powerhouse designed for large-scale deployments. The tri-radio design supports up to 12 spatial streams, ensuring seamless throughput for up to 1,500 devices within expansive coverage zones up to 5,000 ft².

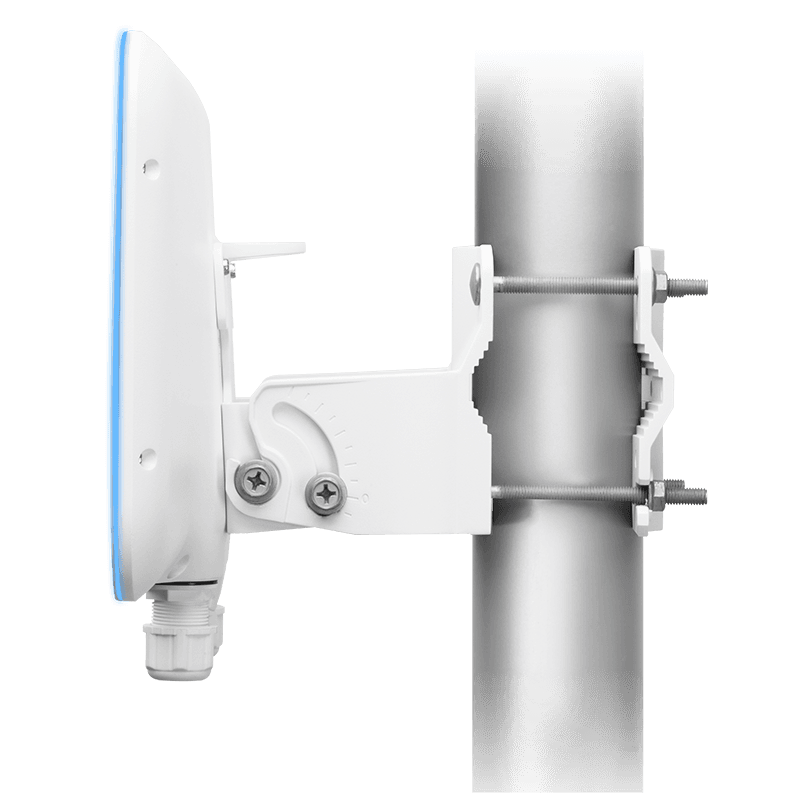

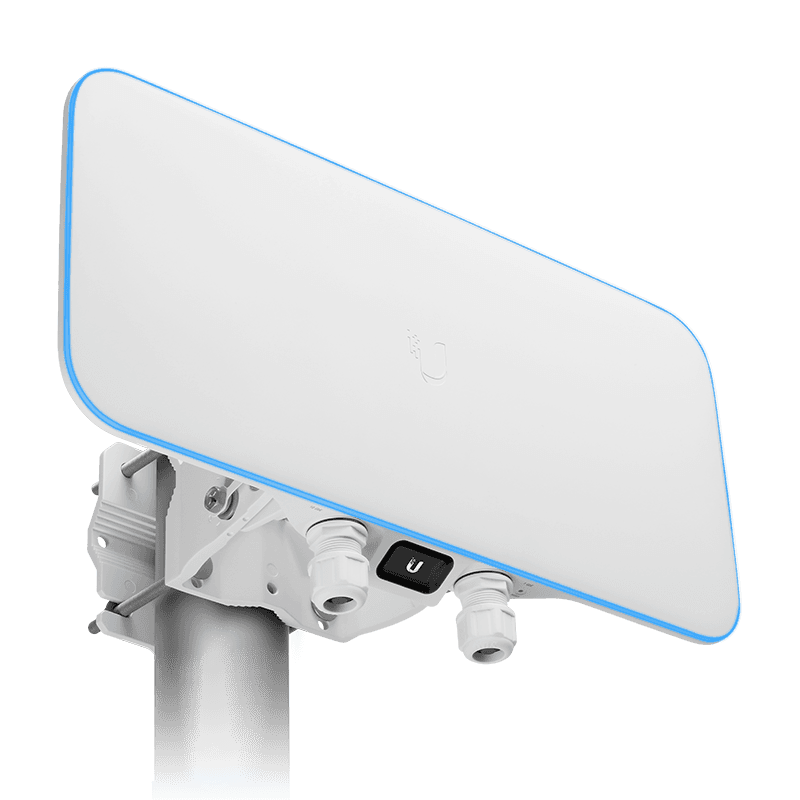

Whether placed on a pole or mounted on a wall, its IP67-rated enclosure is built for outdoor resilience—withstanding the elements while delivering powerful signal coverage via customizable 10 dBi wide-angle or 15 dBi narrow-angle beamforming.
Snap into your wired network seamlessly with a 1 GbE RJ45 and a high-speed 1/10 GbE ICM uplink, while PoE power delivers clean and convenient deployment.
Benefit from added visibility and security thanks to built-in spectrum and security radios—monitoring interference and unauthorized access in real time.
Ideal for stadiums, convention centers, universities, and high-density environments, the BaseStation XG delivers enterprise-grade performance and peace of mind.
Technical Specifications
| Specification | Details |
|---|---|
| Model | UniFi Wi-Fi BaseStation XG (UWB-XG-US) |
| UPC | 817882024242 |
| Weight (without mount) | 3.2 kg (7.1 lb) |
| Dimensions (W × D × H) | 471.1 × 257.5 × 94.3 mm (18.6 × 10.1 × 3.7 in) T |
| Wi-Fi Standard | 802.11ac Wave 2 (Wi-Fi 5) |
| Spatial Streams | 12 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max Clients | 1,500+ |
| Antenna Gain & Beamwidth | 10 dBi (90°); 15 dBi (50°) beamforming modes |
| Tx Power (5 GHz) | 25 dBm |
| Ports | (1) 1 GbE RJ45; (1) 1/10 GbE ICM uplink |
| Power & Consumption | 802.3bt PoE; max 31 W; 44–57 V DC range |
| Mounting Options | Wall, pole, VESA (brackets included) |
| Weatherproofing | IP67 |
| Management Tools | Spectral monitoring, intrusion detection, airtime analytics |
| Operating Temperature | –10 °C to 70 °C |
| Certifications | CE, FCC, IC |
