Features
-
8 × 10G SFP+ Ports – High-speed fiber aggregation for enterprise backhaul and interconnects.
-
High Performance – 160 Gb/s switching capacity, 80 Gb/s non-blocking throughput, and 119 Mpps forwarding rate.
-
Silent & Durable Build – Fanless steel chassis for reliable, noise-free operation.
-
Touchscreen & AR Support – 1.3" LCM display with UniFi app integration for easy port identification and control.
-
Enterprise Layer 2 Features – VLANs, LACP, IGMP snooping, ACLs, QoS, and more for secure and flexible switching.
-

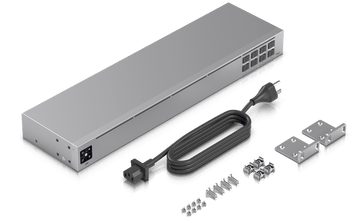

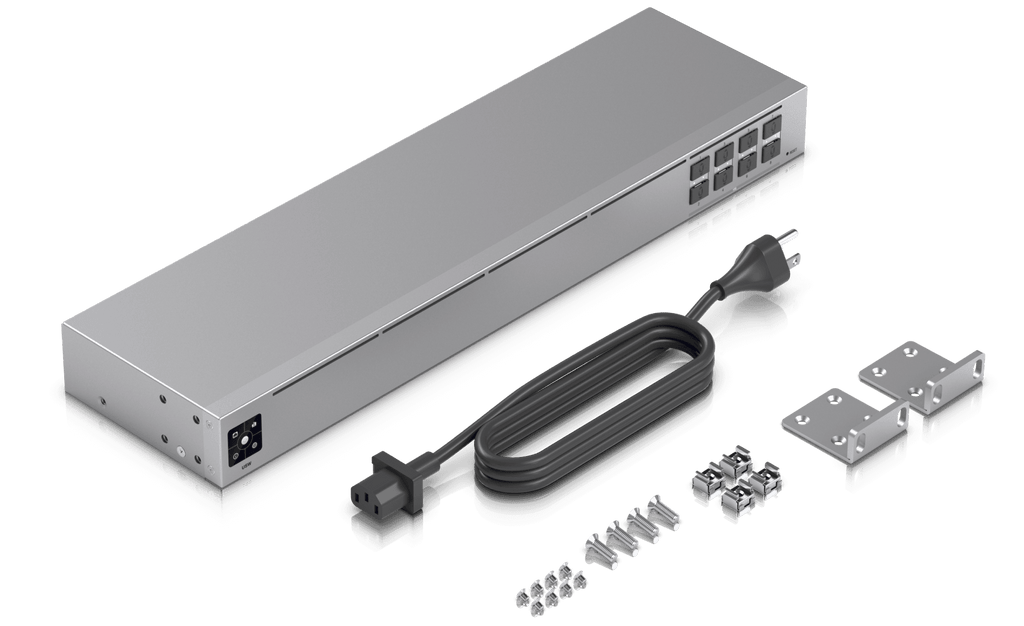

Rackmount Ready – 1U form factor with included mounting kit for seamless data center integration.
The Ubiquiti USW-AGGREGATION is a high-capacity aggregation switch engineered to handle the backbone of enterprise networks. With multiple 10G SFP+ uplink ports, this switch delivers high-speed connectivity for interconnecting switches, servers, and storage devices in data centers or large-scale deployments.
Designed for reliability and scalability, the USW-AGGREGATION supports advanced Layer 2 features such as VLANs, STP/RSTP, jumbo frames, and port mirroring. It integrates seamlessly with the UniFi Network Controller, providing centralized monitoring, configuration, and real-time analytics for network administrators.
Perfect for enterprises seeking robust, high-performance aggregation, the USW-AGGREGATION ensures uninterrupted, scalable, and secure network operations across critical infrastructure.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | USW-AGGREGATION |
| UPC | 810010074157 |
| Uplink / Interface | 8 × 10G SFP+ |
| Switching Capacity | 160 Gb/s (80 Gb/s non-blocking) |
| Forwarding Rate | 119 Mpps |
| Packet Buffer Size | 1.5 MB |
| MAC Address Table Size | 16,000 |
| Layer 2 Features | LACP, STP/RSTP, IGMP snooping, VLANs, ACLs, QoS, port mirroring, jumbo frames, voice VLAN, loop protection |
| Power Supply | Internal AC/DC, 36W; 100–240V AC input |
| Max Power Consumption | 30W (excluding SFP modules) / 36W (including SFP modules) |
| Dimensions | 442 × 120 × 43.7 mm (17.4 × 4.7 × 1.7") |
| Weight | 5.8–6.0 lb / 2.6–2.7 kg |
| Enclosure Material | SGCC steel |
| Mounting Options | Rackmount (1U); supported rack depth 400–1200 mm |
| Operating Conditions | -5 to 40 °C (23 to 104 °F); 10–90% noncondensing humidity |
| Cooling System | Fanless passive cooling |
| Certifications | CE, FCC, IC, Anatel; NDAA compliant |
| Management | 1.3" LCM touchscreen; UniFi Network (v5.14.12+); AR support |
| ESD Protection | Air: ±16kV; Contact: ±12kV |
Meta Title: UniFi Aggregation Switch 8-Port 10G SFP+ Managed Meta Description: Ubiquiti UniFi Aggregation Switch with 8× 10G SFP+ ports, 160Gb/s switching, fanless steel design, 1.3" touchscreen, and UniFi Controller management.
