Features
-
High-Gain Antenna – 21 dBi sector antenna for extended coverage and performance
-
Wide Frequency Range – Operates across 5.10–5.85 GHz
-
Noise Isolation – Built-in deflector design minimizes interference
-
2x2 MIMO Support – Optimized for use with Rocket 5ac radios
-
Rugged Design – Withstands wind speeds up to 200 km/h (125 mph)
-
Durable Build – ETSI EN 302 326 DN2 compliant with dual-linear polarization
-
Scalable Deployment – Ideal for PtMP base station setups

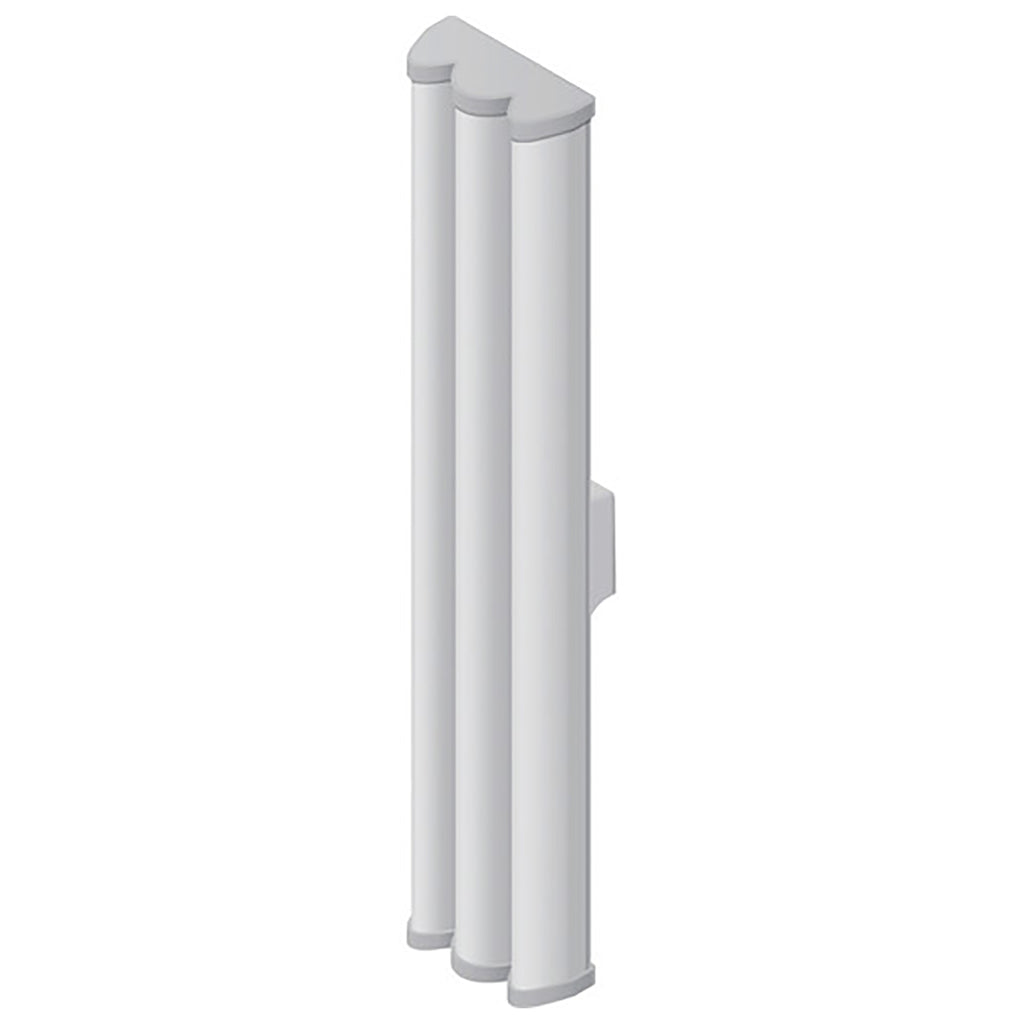

The Ubiquiti Networks airMAXac Sector 2x2 MIMO BaseStation 5 GHz 21 dBi Antenna (AM-5AC21-60) is engineered for high-performance, point-to-multipoint (PtMP) deployments. Designed to pair seamlessly with Rocket 5ac radios, and compatible with RocketM5 models, it enhances scalability, beam performance, and noise isolation for cleaner, more reliable wireless signals.
With advanced deflector design and signal-to-noise ratio optimization, the antenna improves throughput while minimizing interference, making it ideal for dense environments with multiple competing signals. Ubiquiti airMAXac AM-5AC21-60 5 GHz 21 dBi sector antenna with 2x2 MIMO, noise isolation, and rugged outdoor design for scalable PtMP base station deployments.
The Ubiquiti AM-5AC21-60 is a high-performance 5 GHz sector antenna designed for point-to-multipoint deployments. Featuring 21 dBi gain, 2x2 MIMO support, and advanced noise isolation, it delivers strong, stable connections even in crowded environments. Compatible with Rocket 5ac and RocketM5 radios, this rugged antenna ensures scalable, long-range wireless coverage with superior beam performance.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | AM-5AC21-60 |
| UPC | 810354021428 |
| Frequency Band | 5.10 – 5.85 GHz |
| Antenna Gain | 21 dBi |
| Beamwidth | HPOL: 60° (6 dBi), VPOL: 60° (6 dBi), Electrical: 4° |
| Electrical Downtilt | 2° |
| Maximum VSWR | 1.5:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 391 N at 200 km/h (88 lbf at 125 mph) |
| Polarization | Dual-linear |
| Cross-Polarization Isolation | 25/30 dB minimum |
| ETSI Specification | EN 302 326 DN2 |
| Dimensions | 29.53 x 6.81 x 3.07" (750 x 173 x 78 mm) |
| Weight | 10.58 lb (4.80 kg) |
